NEW ACRA KB-36

Equipped With

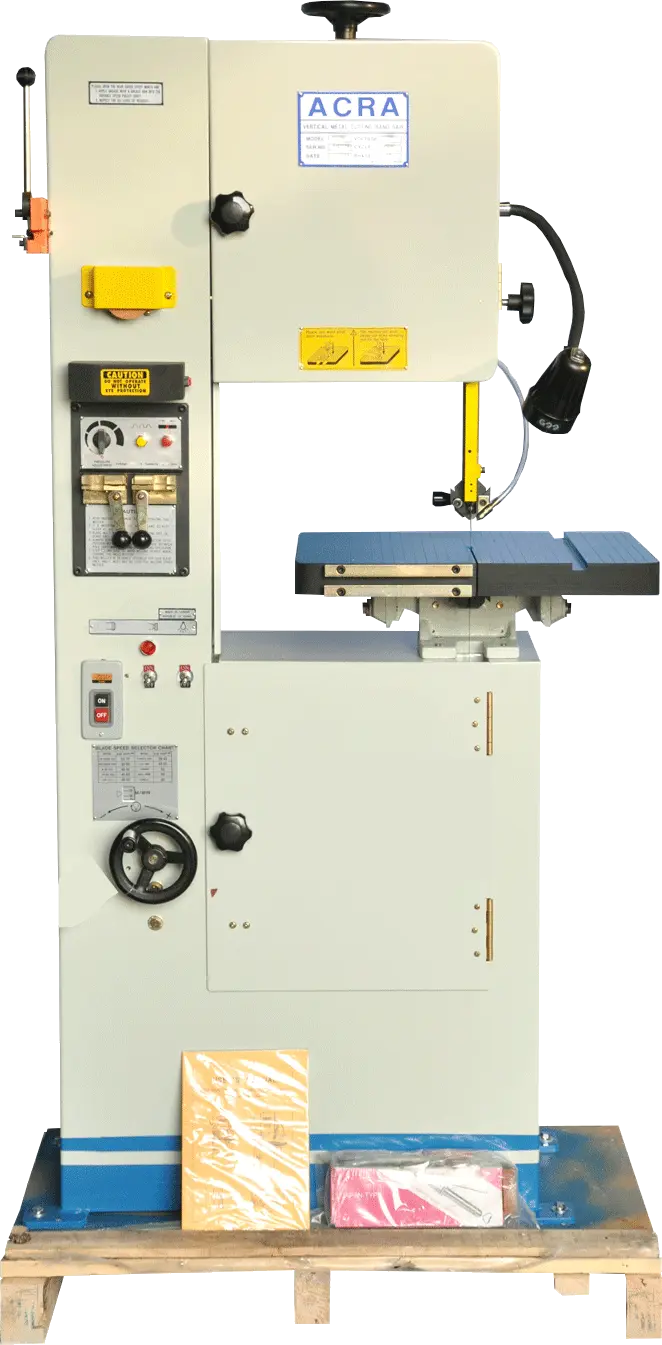

ACRA MODEL KB-36 VERTICAL MANUAL METAL CUTTING BANDSAW
Acra’s KB-36 Robust Vertical Manual Metal Cutting Bandsaw with an adjustable Tilt Table that allows cutting of steel or alloy plate & sections, PVC or composites. Made in Taiwan and featuring the following:
• Blade Tracking
• Saw Guide Holder
• Blade Tension Control
• Variable Speed Adjustment
• Free Wheel Control
• Control Switch
• Angle Adjustment for Work Table
Specifications:
Throat Depth:                                    14″
Work Height:                                      9-1/16″
Table Size:                                          19-1/2″ x 15-1/4″
Table Inclination (4-Ways):                 15 Degree
Saw Blade Length:                              111-13/16″
Saw Blade Width:                               1/8″ – 5/8″
Saw Blade Speeds:                             65-295 FPM
Butt Welder Capacity:                         2.4KVA 1/8″-5/8″
Horsepower:                                       1 HP
Voltage:                                              230V AC ~ 1 Phase
Weight                                                690 lbs
Dimensions                                         40 × 25 × 74 in
Standard Equipment:
• Saw Blade butt welder with integrated annealing unit.
• Blade Shear and Grinder.
• Built-in Blade and Tire cleaning brush.
• Low Voltage Working Lamp.
• One set of required tools.
• One instruction and parts manual.
• Electro-Magnetic Switch for overload protection.
• Blade Guides
• Saw Blade
• Speed Indicator
• Variable Speed Drive
