Equipped With

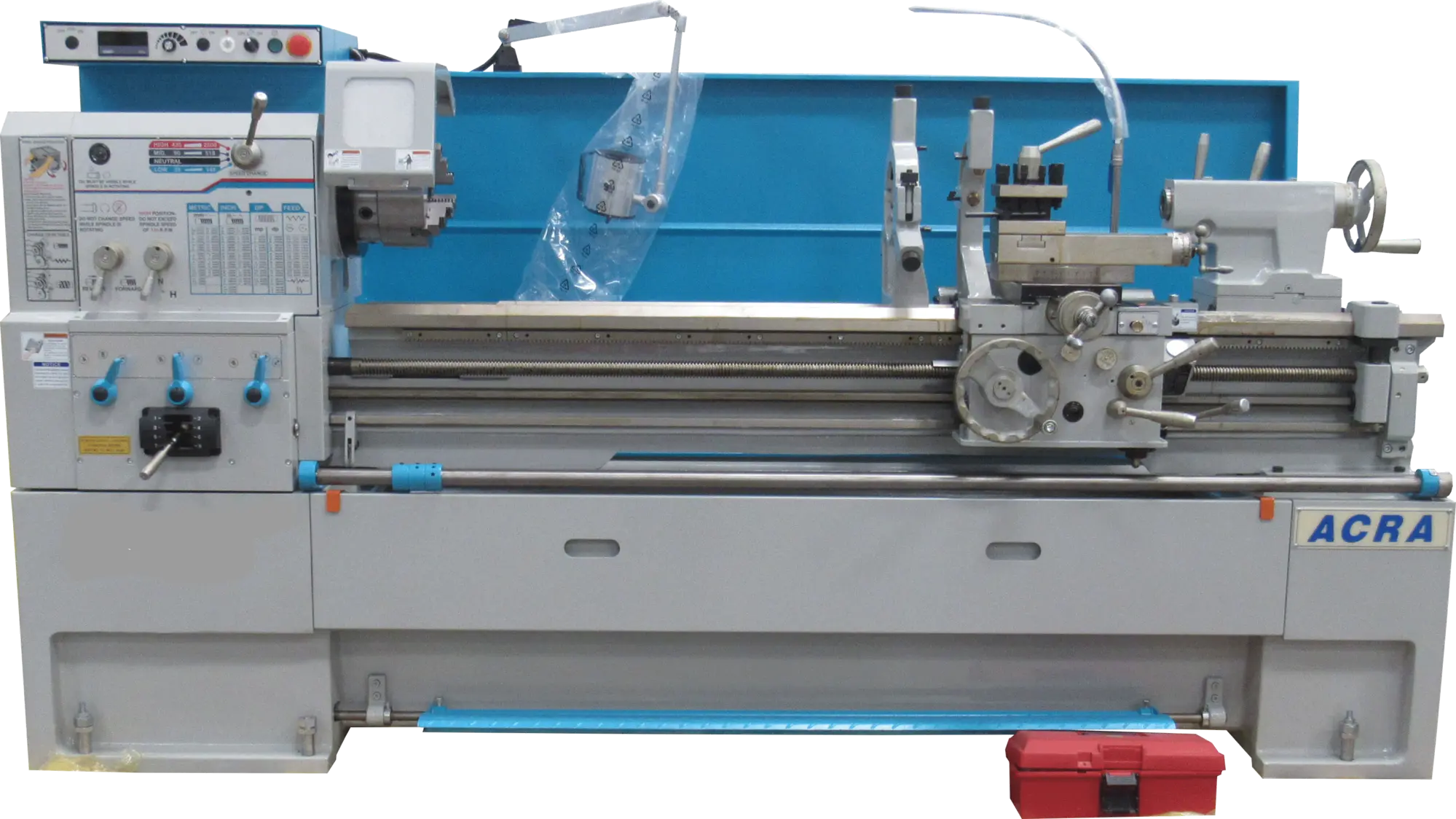

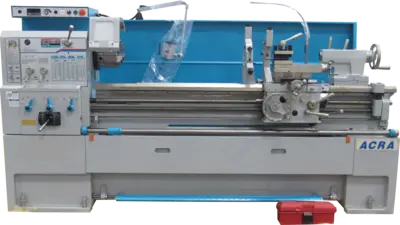

16" X 40" ACRA MODEL 1640TVS PRECISION VARIABLE SPEED GAP BED ENGINE LATHE
Bed & Stand:
Base One Piece Casting
Meehanite Casting, Vibration Stress Relieved
Induction hardened And Precision Ground Bed Ways
Precision Hand Scraped Removable Gap
Foot Brake
Turcite B Coating Between The Bed And Carriage
Spindle:
Supported By 2 Precision Taper Roller Bearings And One Ball Bearing
Dynamically Balanced, Hardened, And Precision Ground
D1-6 Spindle Nose
2-1/6” Diameter Spindle Nose
Apron & Saddle:
Automatic Feed And Threading, Fully Interlocked
Saddle And Top Slide Locking System
Forward-Off-Reverse Lever
4 Way Tool Post
Universal Gear Box:
Oil Bath Lubrication
Heat Treated Precision Ground Gears
Inch, Metric, Module, And Diametrical Threads
Drive:
5 HP 4 Pole AC Inverter
UL AC Inverter
Conveniently Located Control Panel
Digital RPM Meter
20~400 RPM Low Range
400~2800 RPM High Range
Head Stock:
TVS Series-Pressurized Lubrication System
All Gears Chromium Molybdenum, Heat Treated And Precision Ground
Specifications:
Capacity: 16″/30″ x 40″
Swing Over Bed: 16-3/16″
Swing Over Cross Slide: 10-3/8″
Swing In Gap: 30″
Distance Between Centers: 40″
Bed Width: 10-1/4″
Spindle Nose: D1-6
Spindle Bore: 2-1/16″
Taper of Spindle: MT NO.6
Spindle Speeds – Steps: 2
Spindle Speeds – Range: 20 ~ 2500 RPM
Cross Slide Travel: 8-11/16″
Compound Slide Travel: 5-1/2″
Inch Threads: 2 ~ 72 TPI
Metric Threads: 0.2 ~ 14 mm
Longitudinal Feeds: 0.002 ~ 0.067″/rev
Cross Feeds: 0.001 ~ 0.034″/rev
Tailstock:
Quill Diameter: 2″
Quill Travel: 6″
Quill Taper: MT NO.4
Spindle Drive Motor: 5 HP
Voltage: 230V AC / 3 PH / 1 PH
Weight 3970 lbs
Dimensions 114 × 36 × 54 in
Standard Equipment:
8″ 3-Jaw Chuck
Full Length Splash Guard
Inverter Controlled Motor
10″ 4-Jaw Chuck
Coolant System
Face Plate
Steady/Follow Rest
4 Way Tool Holder
Center Sleeve
Foot Brake
Chuck Guard
Halogen Light
