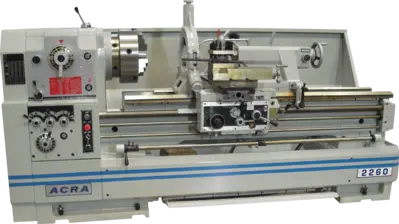

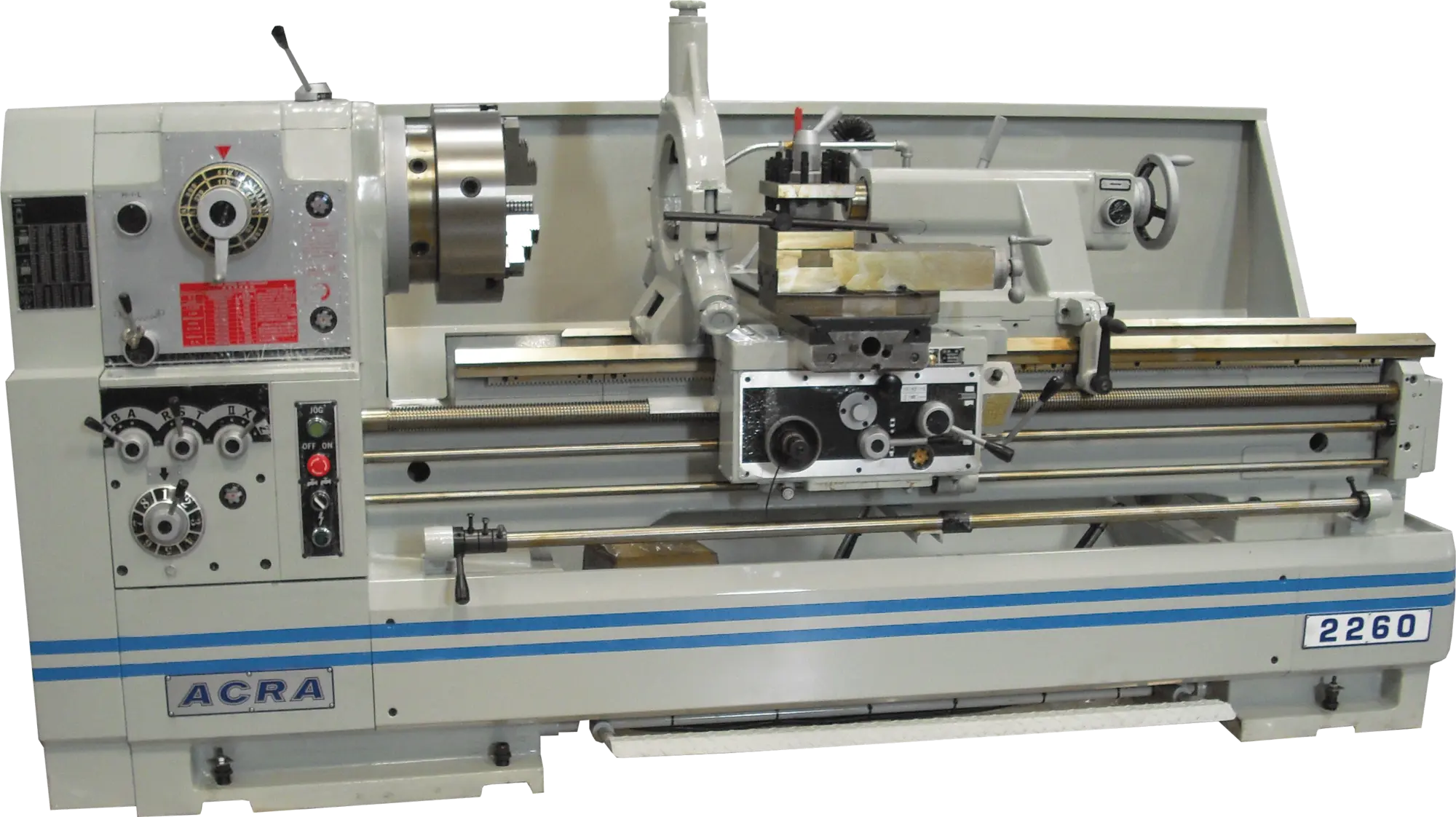

NEW 26" X 90" ACRA 2690ACH PRECISION GAP BED ENGINE LATHE
Capacity: 26″/35″ x 90″
Swing Over Bed: 26″
Swing Over Cross Slide: 17-1/2″
Swing In Gap: 35-1/8″
Distance Between Centers: 90″
Bed Width: 15-3/4″
Spindle Nose: D1-11
Spindle Bore: 4-1/16″
Taper of Spindle: MT NO.7 x MT NO.5
Spindle Speeds – Steps: 12
Spindle Speeds – Range: 13 ~ 1,200 RPM
Cross Slide Travel: 15-3/4″
Compound Slide Travel: 9-1/2″

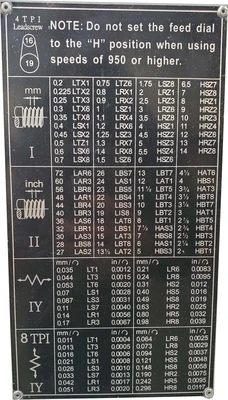

Inch Threads: 2 ~ 72 TPI
Metric Threads: 0.2 ~ 14 mm
Longitudinal Feeds: 0.0012 ~ 0.039 in/rev
Cross Feeds: 0.0004 ~ 0.0117 in/rev
Quill Diameter: 2.935″
Quill Travel: 7″
Quill Taper: MT NO.5
Spindle Drive Motor: 15 H.P.
Voltage: 230/460V AC/3 PH
Weight 7200 lbs
Dimensions 146 × 48 × 60 in
Standard Equipment:
MAIN MOTOR 15 HP
CENTER SLEEVE MT No. 5
DEAD CENTER MT NO. 5 X 2 PCs
LEVELING SCREW AND BLOCK
SERVICE KITS AND TOOL BOX
STEADY REST- 1-5/8″ -10″
DRIVE PLATE- 12″ FOR D1-11 ONLY
COOLANT SYSTEM
MULTI – POSITION LENGTH STOP
FOLLOW REST
FACE PLATE- 20″
3 JAW SCROLL CHUCK- 15″
4 JAW INDEPENDENT CHUCK- 20″
FULL LENGTH SPLASH GUARD
