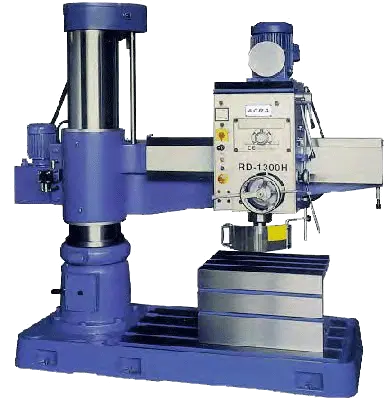

NEW ACRA FRD1300

Equipped With

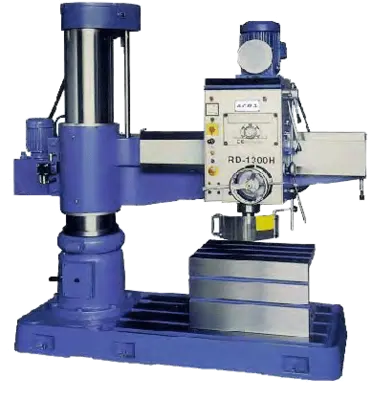

FRD1300 RADIAL ARM DRILLING MACHINE WITH HYDRAULIC CLAMPING
• Roller bearing at the base is built around a double column that provides maximum rigidity and accuracy.
• The Spindle Main gear is made of a SCM material and is all through harden and precision grinding.
• Column is Duplex type. The inner cylinder has a thick wall and reinforced by ribs.
• Made in Taiwan
Specifications:
Drilling Capacity Steel:                               2-1/8″
Drilling Capacity Cast Iron:                        2-1/2”
Tapping Capacity Steel:                             1-9/16”
Tapping Capacity Cast Iron:                       2”
Boring Capacity Steel:                                3.9”
Boring Capacity Cast Iron:                         6.8”
Spindle Stroke:                                           9-7/8”
Spindle Taper:                                            MT#5
Spindle Speeds (12):                                  44-1,500 RPM
Spindle Feeds:                                            0.002-0.012 IPR
Column Diameter:                                      11-7/8”
Spindle to Column Center:                         21-3/4” ~ 55-1/2”
Base to Spindle:                                          21-1/8” ~ 48-1/2”
Horizontal Travel of Headstock:                 36-1/8”
Spindle Drive Motor:                                  5 HP
Arm Elevation Motor:                                 2 HP
Coolant Pump Motor:                                1/8 HP
Hydraulic Motor:                                        1 HP
Voltage:                                                       230/460V AC~3 Phase (2 Speed)
Weight                                                        5550 lbs
Dimensions                                                 90 × 39 × 88 in
Standard Equipment:
• Coolant System
• Box Table
• Work Light
• Emergency Stop
• Toolbox
• Manual & Parts List
