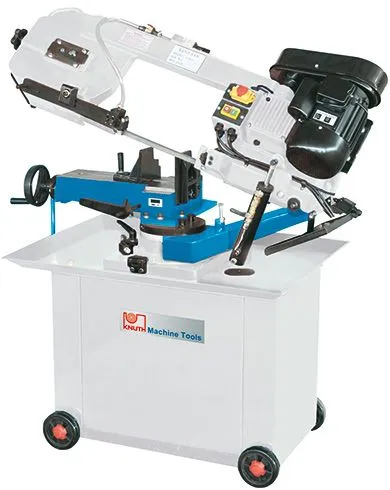

NEW KNUTH B 200 S

Equipped With
Cutting Capacities
Cutting capacity 90¡ round
8 in
Cutting capacity 90¡ - square
8 in
Cutting capacity 90¡ - flat
8x8 in
Cutting capacity 45¡ (square) L
5 in
Cutting capacity 45¡ (round) L
5 in
Cutting capacity 45¡ (flat) L
8x5 in
Belt speed
945 / 1614 / 2402 / 3228 fpm
Drive Capacity
Motor rating main drive
1.5 Hp
Measures and Weights
Belt dimensions
92.91x0.79x0.04 in
Overall dimensions (length x width x height)
49x26x52 in
Weight
418 lbs
Part No.
102752

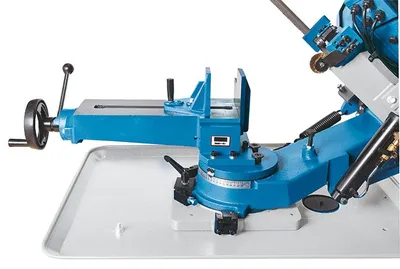

Saw frame swivels - allowing angular cuts to 45¡
Coolant system is included
Thin saw blade for reduced material removal
Exact cuts - rigid construction prevents belt track deviations
Quiet, low-vibration operation
Saw frame feed is infinitely variable via hydraulic cylinder
A hydraulic cylinder controls the support pressure infinitely from 0 to maximum pressure
coolant system
quick-action vise
mobile base
saw-band
operator manual
