Equipped With
Working Area
Table dimensions
52x14 in
Table load capacity (max.)
1,100 lbs
Number of T-slots
3 positions
T-slot (width x spacing)
0.71x3.15 in
Travels
Travel X-axis
29.5 in
Travel Y-axis
11 in
Travel Z-axis
15 in
Milling Head
Speed range
(12) 60 - 1,750 rpm
Spindle mount
ISO 50
Swivel angle
360¡
Upper beam travel
22 in
Spindle center-to-table distance
7 - 22 in
Rapid Feed
Rapid Feed X-axis
47.24 in/min
Rapid Feed Y-axis
31.5 in/min
Rapid Feed Z-axis
23.62 in/min
Horizontal Milling Spindle
Spindle speed (horizontal)
(12) 60 - 1,800 rpm
Spindle mount
ISO 50
Throat
15 - 37 in
Feed
Feed speed X-axis
1.1811 - 29.5275 in/min
Feed speed Y-axis
1 - 20 in/min
Feed speed Z-axis
0.5906 - 14.7638 in/min
Drive Capacity
Motor rating horizontal spindle
7.4 Hp
Motor rating vertical spindle
5.4 Hp
Motor rating X axis feed
2 Hp
Motor rating Y axis feed
2 Hp
Motor rating Z axis feed
2 Hp
Motor rating coolant pump
0.1 Hp
Measures and Weights
Overall dimensions (length x width x height)
71x83x79 in
Weight
6,347 lbs
Part No.
362750

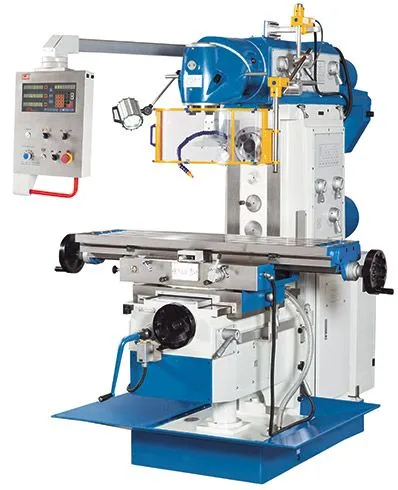

Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing
Precision-ground guideways with hardened surfaces for long term accuracy and wear resistance
Large work area of 52 x 14 inch
and up to 1102 lb table load capacity
Quiet, precision-made headstock gears with hardened and ground gears

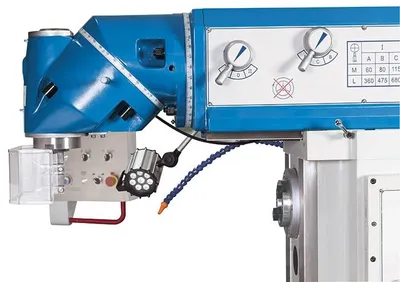

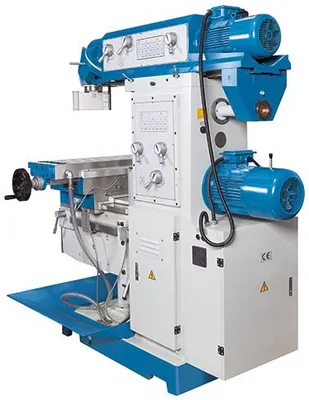

Universal cutter head swivels on 2 planes - quick change-over from horizontal to vertical machining
By combining both swivel levels, almost
any angle can be set
Powerful axis servo-motors allow infinite adjustment of feeds on all 3 axes
Telescoping covers on the Y axis protect the feed spindle
Control panel swings out to either side and features an integrated position indicator
7 HP main drive guarantees high torque
Coolant system and chip tray are included
3-axis position indicator
More accuracy
Lower error rate
Increased productivity
Resulting in valuable time savings
For increased productivity
Easy to read display
Operator-specific features
Convenient keyboard layout
Resolution: 0.0004 / 0.0002"
Default coordinates
Axis position is maintained when display is turned off
Hole circle pattern calculation
Calculator function
Storage for 10 tools
Radius / diameter toggle
Mm/inch conversion
Easy expansion and maintenance-free operation
3-axis position indicator
reducing sleeve ISO 50 / MT4
milling arbors (1 in, 1.23 in)
outer arbor support for horizontal milling
ISO 50 collet chucks incl. collets up to 0.6 inch (8 pieces)
coolant system
work lamp
chip tray
draw bar
operating tools
operator instructions
