Equipped With
Working Area
Center width
31.89 in
Turning diameter over bed
12 in
Turning-¯ over support
7 in
Turning diameter over gap bridge
17 in
Bed width
7 in
Travels
Travel X-axis
6.1 in
Travel Z1-axis
4 in
Swing range of top slide
± 60¡
Headstock
Spindle speed
(9) 60 - 1,550 rpm
Spindle bore
1 in
Spindle mount
Camlock D1-4
Spindle taper
MT 5
Feed
Feed X-axis
0.00055 - 0.01496 in/R
Feed Z-axis
0.00205 - 0.0548 in/R
Tapping
Tapping, metric
(26) 0,4-7 mm
Tapping, withworth
(34) 4-56 TPI

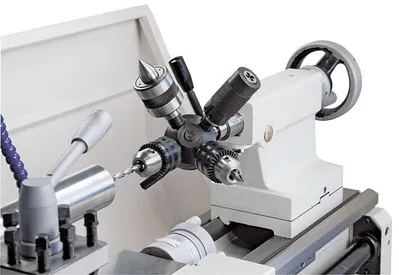

Tailstock
Tailstock quill diameter
1 in
Tailstock taper
MT 3
Tailstock quill stroke
4 in
Tailstock traverse adjustment
± 0.5 in
Drive Capacity
Motor rating main drive
1.5 Hp
Measures and Weights
Overall dimensions (length x width x height)
63x30x50 in
Weight
1,144 lbs
Part No.
300809

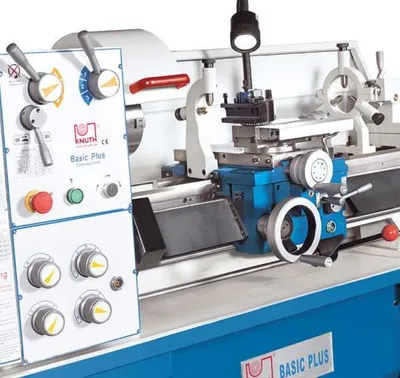

Hardened and ground headstocks gears
Gap bridge
Headstock with Camlock D1-4" mount, bore diam. 1.5 in, run in 2 adjustable tapered roller bearings
Adjustable headstock bearing
Tailstock can be moved ± 0.4 in for taper turning
Reversing gear reversing gearbox for changing the feed direction
Guides are adjustable via tapered gibs
Cast-iron bed, double v-guide, hardened and ground

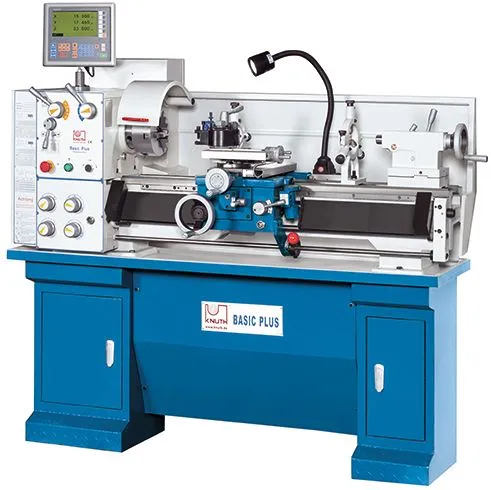

3-axis position indicator
More accuracy
Lower error rate
Increased productivity
Resulting in valuable time savings
For increased productivity
Easy to read display
Operator-specific features
Convenient keyboard layout
Resolution: 0.0004 / 0.0002"
Default coordinates
Axis position is maintained when display is turned off
Hole circle pattern calculation
Calculator function
Storage for 10 tools
Radius / diameter toggle
Mm/inch conversion
Easy expansion and maintenance-free operation
Display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes
3-axis position indicator
3-jaw chuck ¯ 6"
4-jaw face plate chuck ¯ 8" (not for Basic 180 V)
face plate ¯ 10"
quick change tool holder WAD 1675
quick change tool holder head WA
steady and follow rests
chip tray
fixed splash guard (wall)
chuck guard
base
change gears
reducing sleeves
dead center
thread gauge
operating tools
operator instructions
