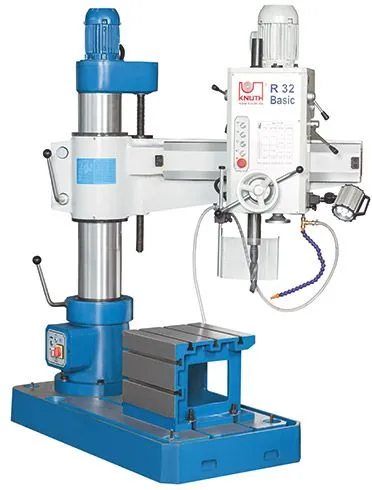

NEW KNUTH R 32 BASIC

Equipped With
Working Area
Drilling capacity
1.26 in
Column diameter
8 in
Throat
13 - 32 in
Spindle nose-to-table surface distance
13 - 34 in
Cube table dimensions
16x16x14 in
Machine table dimensions
54x28x6 in
Quill stroke
9 in
Headstock
Spindle mount
MT 4
Speed range
(6) 75 - 1,220 rpm
Feed
Feeds
(3) 0 - 0.01 in/R
Drive Capacity
Motor rating main drive
2 Hp
Measures and Weights
Overall dimensions (length x width x height)
56x29x75 in
Weight
3,135 lbs
Part No.
101522
For drilling, reaming and tapping
Machine frame made of high-quality fine-grain cast-iron with heavy ribbing to ensure maximum reduction of vibrations
Precision-ground gears for quiet operation
Practical layout of electrical and mechanical controls at the headstock for easy operation
Motorized arm height adjustment
The spindle is made of high-quality hardened steel of consistent accuracy
Mechanical clamping for head, column and arm
coolant system
cube table
halogen lights
