NEW KNUTH LABTURN 2028

Equipped With
Working Area
Workpiece length (max.)
11 in
Turning diameter over bed
8 in
Turning-¯ over support
4 in
Travels
Travel X-axis
3.4 in
Travel Z-axis
6 in
Headstock
Speed range
100 - 3,000 rpm
Spindle mount
MK 3
Spindle bore
1 in
Lathe chuck diameter
4 in
Rapid Feed
Rapid Feed X-axis
78.74 in/min
Rapid Feed Z-axis
78.74 in/min
Feed
Velocity X / Z axis
39 in/min
Feed speed X-axis
39 in/min
Feed speed Z-axis
39 in/min
Max. torque feed motor X-axis
19.47 ft.lb.
Max. torque feed motor Z-axis
19.47 ft.lb.
Tool Head
Number of tool stations
4 positions
Tool shank dimensions
0.3x0.3 in
Boring bar mount diameter
0.5 in
Accuracies
Positioning accuracy X-axis
0.00087 in
Positioning accuracy Z-axis
0.00087 in
Repeatability X-axis
0.00039 in
Repeatability Z-axis
0.00039 in
Tailstock
Tailstock quill diameter
1 in
Tailstock quill stroke
1 in
Tailstock taper
MT 2
Drive Capacity
Motor rating main drive
1.3 Hp
Measures and Weights
Overall dimensions (length x width x height)
56x36x73 in
Weight
792 lbs
Part No.
181625

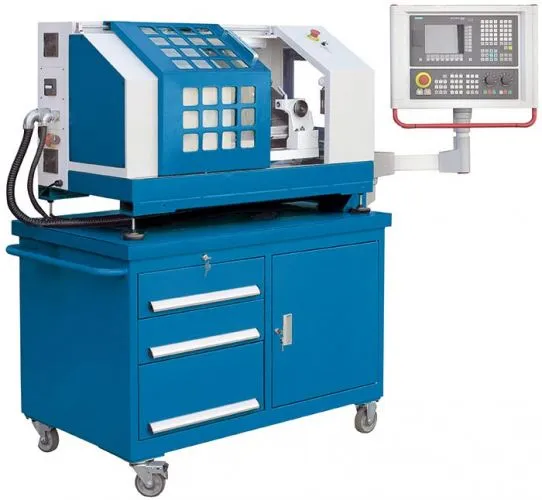

The LabTurn is an ideal lathe for CNC training and small batch production of high
precision workpieces

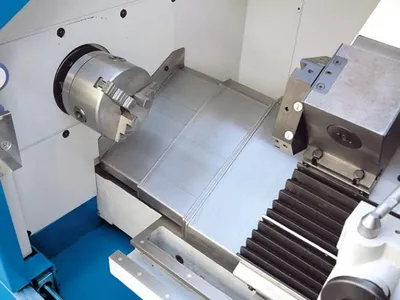

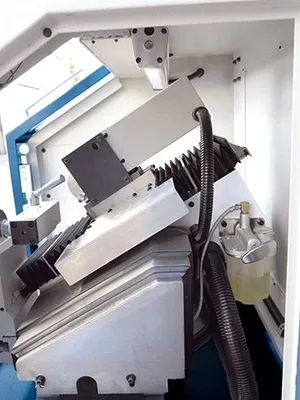

Rigid cast-iron inclined bed design ensures good stability and efficient chip removal
Precision linear guides ensure high stability and accuracy
Central lubrication for reduced maintenance
Enclosed workspace protects and a large sliding door provides easy access
Production control technology with superior reliability
8-station tool turret with 4 tools per station for inside and outside turning
Hydraulic 100 mm 3-jaw chuck and rigid tailstock are included in standard equipment
User-friendly solution for turning applications with a small footprint
Precision and Productivity
Calculations are performed with 80-Bit NanoFP accuracy without any internal rounding errors
The 808 series features powerful computing capacity and advanced technology cycles for superior performance
Fast and smart control functions ensure maximum precision and accuracy for superior surfaces, and at the same time they reduce wear and tear of mechanical machine parts
Self-explanatory use and powerful CNC functions ensure highest workpiece precision and short machining times
ãProgram Guide BasicÒ for easy programming via cycle masks with graphic support, plus convenient contour calculator
Allows re-using of part programs from other controls that support ISO code
The menu structure of the completely updated Sinumerik Operate Basic has been closely adapted to the larger Sinumerik Operate system's menu
The interface at the front panel provides a connector for USB memory sticks for easy transfer of parts programs and tool data during everyday operation
The user interface allows online change between languages
This series features ergonomically designed rotary override switches
The keyboard features chicklet key caps for optimum tactility
Siemens 808D Advance control
electronic hand-wheel
8-station turret
mobile base
tailstock
3-jaw chuck (4" diam.)
central lubrication
work lamp
operating tools
operating manual and programming instructions
