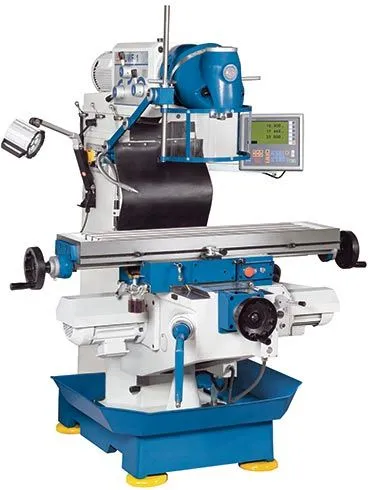

NEW KNUTH UWF 1.1

Equipped With
Working Area
Table set up area
44x10 in
Table load capacity (max.)
550 lbs
Number of T-slots
3 positions
T-slot (width x spacing)
0.55x2.48 in
X axis travel
24 in
Y axis travel
9 in
Z axis travel
15 in
Vertical Milling Head
Speed range
45 - 1,660 rpm
Spindle mount
DIN 2080 / ISO 40
Throat
2 - 20 in
Vertical spindle-to-table surface distance
3.94 - 18.9 in
Milling head swivel range
360 deg
Rapid Feed
Rapid Feed Z-axis
16.61 in/min
Feed
Feed speed X-axis
(9) 1 - 16 in/min
Feed speed Y-axis
(9) 1 - 16 in/min
Drive Capacity
Motor rating main drive
3 Hp
Measures and Weights
Overall dimensions (length x width x height)
66x60x69 in
Weight
3,256 lbs
Part No.
362693
Heavy machine frame with wide, adjustable dovetail guides in all axes

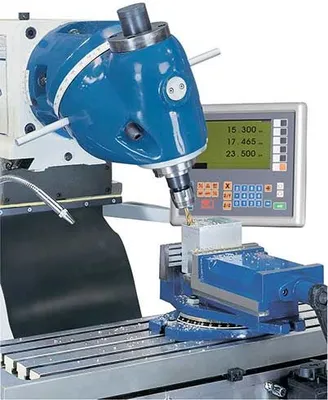

Rigid universal cutter head, can be moved to virtually any spatial angle on two levels

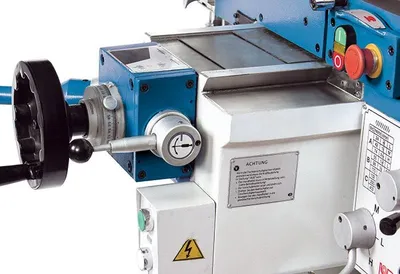

Automatic table feed on X and Y axes, including rapid feed
Motorized height adjustment in Z direction
3-axis position indicator
outer arbor support for horizontal milling
milling chuck with collets 0.61",0.2",0.24",0.31",0.39",0.47",0.55",0.63"
long cutter arbor ¯ 1.25"
coolant system
LED work lamp
operator manual
