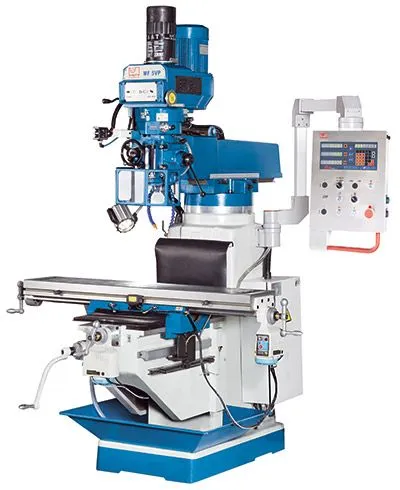

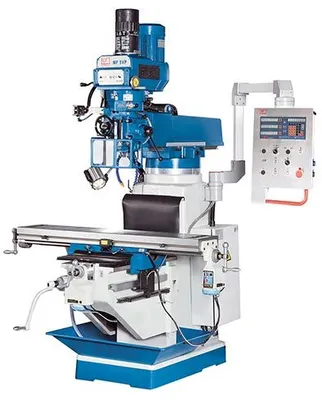

NEW KNUTH MF 5 VP

Equipped With
Working Area
Table set up area
54x10 in
Table load capacity (max.)
770 lbs
Travels
Travel X-axis
31.5 in
Travel Y-axis
15 in
Travel Z-axis
15 in
Vertical Milling Head
Speed range
70 - 3,600 rpm
Spindle mount
ISO 40
Quill stroke
5 in
Feed
Quill feeds
(3) 0.002; 0.003; 0.006 in/R
Drive Capacity
Motor rating main drive
5 Hp
Measures and Weights
Overall dimensions (length x width x height)
100x85x88 in
Weight
3,498 lbs
Part No.
301217
More rigid and more powerful with 5 Hp motor
ISO 40 spindle
3 automatic drill feeds
Manual coarse feed for quill, with change-over for manual fine feed
Quill with micrometer depth stop
Reversing switch for forward reverse rotation
Spindle brakes
Infinitely variable speeds
Head swivels ± 90¡ to the right and to the left
TV 1000 table feed in X and Y, infinitely variable with rapid feed
Coolant system
Chip tray
Central lubrication
Pneumatic tool clamping
3-axis position indicator
More accuracy
Lower error rate
Increased productivity
Resulting in valuable time savings
For increased productivity
Easy to read display
Operator-specific features
Convenient keyboard layout
Resolution: 0.0004 / 0.0002"
Default coordinates
Axis position is maintained when display is turned off
Hole circle pattern calculation
Calculator function
Storage for 10 tools
Radius / diameter toggle
Mm/inch conversion
Easy expansion and maintenance-free operation
3-axis position indicator
table feed TV 1000 in X- and Y-axis
pneumatic tool clamping
chip tray
coolant system
central lubrication
horizontal guideway cover
operating tools
operator manual
