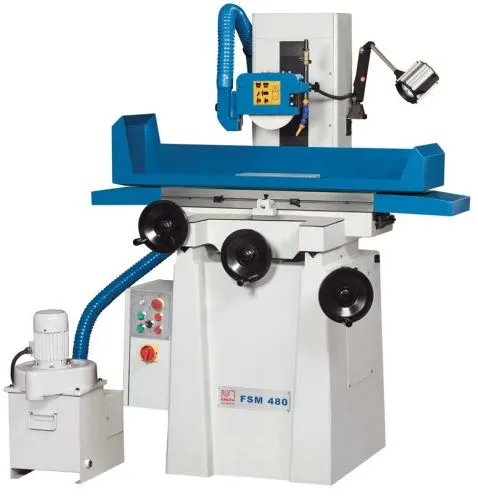

NEW KNUTH FSM 480

Equipped With
Working Area
Table dimensions
8x18 in
Spindle axis-to-table surface distance
17.72 in
Travels
Travel X-axis
18.9 in
Travel Y-axis
9 in
Travel distance per hand-wheel rotation, X-axis
0.2 in
Travel distance per hand-wheel rotation, Y-axis
0.2 in
Travel distance per hand-wheel rotation, Z-axis
0.04 in
Feed
Scale ring division X-axis
0.00079 in
Scale ring division Y-axis
0.00079 in
Scale ring division Z-axis
0.0002 in
Accuracies
Roughness
>= 0,63 µm Ra
Drive Capacity
Motor rating main drive
2 Hp
Measures and Weights
Grinding wheels dimensions
8x1x1 in
Weight
1,606 lbs
Part No.
122802
Spindle resists high loads; mounted in pre-loaded angular deep-groove ball bearings ensures low-vibration operation, high accuracy, increased lifetime and low maintenance
Completely leak-proof and balanced spindle motor with high load capacity
Solid, vibration-absorbing construction
V- and flat guides in X and Y direction for consistently high accuracy
Longitudinal table movement over linear ball guide; linear roller guide way
Adjustable hand wheel scales for vertical and transverse adjustments allows zeroing at any position
Central lubrication
Grinding parallelism 0.0002" / 12"
exhaust vacuum
work lamp
magnetic clamping plate 5"x11.75"
diamond dresser
balancing shaft
balancing station
Angle - adjustable grinding vise
grinding wheel dresser holder
operating tools
operator manual
