Equipped With
Working Area
Table set up area
54x12 in
Table load capacity (max.)
770 lbs
Travels
Travel X-axis
26.8 in
Travel Y-axis
14 in
Travel Z-axis
15 in
Vertical Milling Head
Speed range (infinitely variable, back gear ranges)
50 - 4,000 rpm
Spindle mount
ISO 40
Quill stroke
5 in
Spindle nose-to-table surface distance
7 - 22 in
Rapid Feed
Rapid Feed X-axis
196.85 in/min
Rapid Feed Y-axis
118.11 in/min
Rapid Feed Z-axis
78.74 in/min
Feed
Feed speed (infinitely variable)
0 - 39 in/min
Feed per spindle revolution
0 - 0.04 in/R
Drive Capacity
Motor rating main drive
5 Hp
Measures and Weights
Overall dimensions (length x width x height)
100x86x89 in
Weight
3,960 lbs
Part No.
301250
Conventional milling, now easier, more precise and more efficient due to integrated electronics

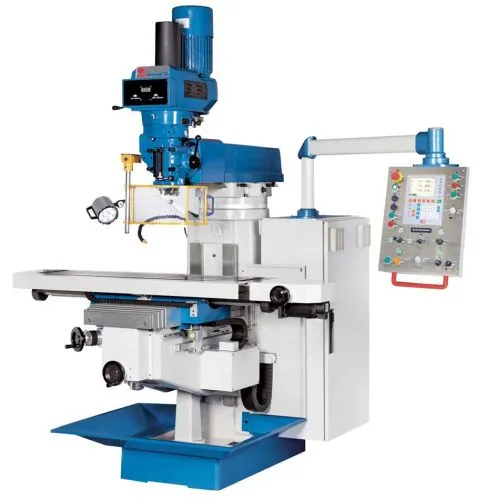

The Servomill represents a new generation of advanced milling machines that are operated like a conventional machine
This machine features a user-friendly design, significantly higher precision and increased machining capacity
Very high reliability and long service life of all components ensure drastically reduced maintenance and increased reliability
Rigid machine base in a proven design, and meticulous workmanship
Variability via swiveling and moving top beam
Perfectly adjustable dovetail guide on the X axis, and wide square guides in Y and Z direction
High-precision preloaded ball screws on all 3 axes
All guides are hardened and ground, and are supplied with oil by the central lubrication unit
Cutter head swivels with pneumatic tool clamping and powerful 5 HP motor
Infinitely variable spindle speed with back gearing and LED speed indicator
Manual quill feed with micrometer depth stop allows for precise angular bores

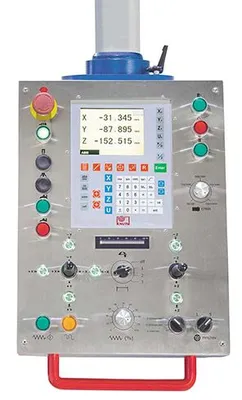

Large, swiveling control panel with integrated position indicator
Servomill - Highlights
Control developed and built in Germany
Positioning control for traveling pre-selected paths on all axes
Constant cutting speed, where the feed speed is based on spindle speed
Zero-backlash preloaded ball screws
Servo motors on all axes, infinitely variable feed, rapid feed, and speed control
Electronic spindle load indicator
Electronic hand-wheels on all axes
X, Y and Z axes can be controlled via joystick
Integrated position indicator with glass scale
Your Advantages:
Easy to use: intuitive operation - practical layout of control elements and streamlined function
Automatic feed on all axes and infinitely variable rapid feed
With speeds up to 197 in/min
Set limit stops on any axis with the push of a button - 3 stop positions per axis can be stored
More precise: operated via electronic hand-wheels - axes are powered by high-quality servo drives that translate your hand movements with the precision and dynamics of modern CNC machines
More reliable: drives, spindles, and measuring systems are totally enclosed or mounted in protective enclosures and virtually maintenance-free
Electronics - made in Germany
More capacity: this machine only uses premium drive components that are designed for continuous operation
Maintenance-free: no regular maintenance needed for the entire feed drive
Advanced Feed Technology:
Axes are powered by high-quality servo drives that translate your hand movements with the precision and dynamics of modern CNC machines
Reliable, maintenance-free mass production technology
High rapid feed rate for reduced machine down-times
Ball screw drive on all axes:
Considerably less errors due to loseness (backlash), resulting in significantly higher precision
Significantly reduced friction, no stick-slip effect, reduced heat buildup, minimal wear
Electronic hand-wheels:
Micro-control via electronic hand-wheels offering the same handling and postioning as with a conventional machine, just smoother and more precise
Joystick control:
Maximum operator comfort for axis movements
Easy handling during sequential processing
Electronically controlled fixed stops:
Set 2 limit stops at 3 positions on each axis by the push of a button - these buttons are grouped around the feed switch for intuitive control
This ensures high repeatability during coordinate drilling or pocket cutting, and siginificantly more positions can be set up than on conventional machines
Constant cutting speed:
The feed rate is infinitely variable and can be coupled with the spindle speed in a selectable feed-per-spindle revolution ratio in the range of 0.0004 to 0.04 inch/rev
This ensures a constant feed-per-tooth value and simplifies the operator's task of optimizing the machining operation
Electronic spindle load indicator:
Assists the operator in the most efficient utilization of machine and tool capacities
Reliable indicator helps avoid damages caused by overloads
X.pos Plus - You will gain productivity,
quality and comfort
Default coordinates
Hole circle pattern calculation
Vibration filter feature
Mm/inch conversion
8 display languages
Calculator function
high-resolution display with excellent legibility
state-of-the art electronics and a very robust, completely sealed enclosure ensure maximum safety and optimum production conditions
a major focus during the development and selection of electronic components was the achievement of maximum resistance against external interferences and maintaining low temperature levels
background colors of the display can be changed as required or desired
the keyboard membrane is highly resistant and yet very comfortable to touch
the display also provides a key to toggle between radius and diameter
the axis position is maintained when the display is turned off
graphical support with residual path display and sketch drawing
linear and non-linear length correction is possible
easy mounting, easy electric connection, and maintenance-free operation
3-axis position indicator
electronic hand-wheels
pneumatic tool clamping
chip tray
LED work lamp
coolant system
central lubrication
horizontal guideway cover
operating tools
operator manual
