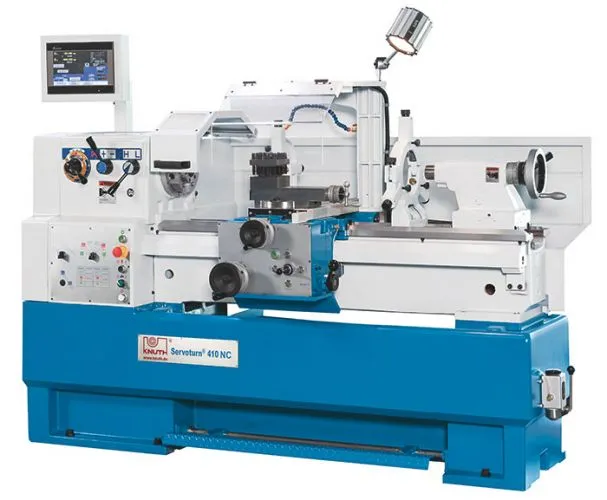

NEW KNUTH SERVOTURN 410 NC

Equipped With
Working Area
Center width
40 in
Turning diameter over bed
16 in
Turning diameter over support
9 in
Turning diameter without gap bridge
20 in
Bed width
12 in
Travels
Travel X-axis
9.4 in
Travel Z1-axis
5 in
Headstock
Spindle speed
(12) 30 - 2,000 rpm
Spindle bore
2 in
Spindle mount
D1/6
Spindle taper
MT 6
Feed
Feed X-axis
0.00039 - 0.07874 in/R
Feed Z-axis
0.00039 - 0.07874 in/R
Tapping
Tapping, metric
0.02 - 14 mm
Tapping, diametric
6 - 100
Tapping, module
0 - 0.2 in
Tapping, withworth
2 - 100 TPI
Leadscrew
1.26x0.24 in
Tailstock
Tailstock taper
MT 4
Tailstock quill diameter
2 in
Tailstock quill stroke
5 in
Drive Capacity
Motor rating main drive
5 Hp
Motor rating coolant pump
0.1 Hp
Measures and Weights
Overall dimensions (length x width x height)
87x39x48 in
Weight
3,850 lbs
Part No.
470546
A heavy ribbed machine bed and a massive one-piece cast-iron frame provide the solid basis for this machine
Wide, hardened and ground guideways ensure superior turning results and long life
Removable bridge allows machining of workpieces with larger diameters
The massive headstock is equipped with a large main spindle that runs on two high-capacity tapered roller bearings and one grooved ball bearing
The main drive features a wide speed range with 12 gear steps that easily can be selected via shifting
Feeds, thread types, and contours are designed simply and intuitively with electronic selection via a headstock-mounted rotary switch
In addition to standard machining tasks with extensive thread options, this machine can be used for turning tapers and radii
Values for travel distances, feed speeds, and thread leads are input via touchscreen at the control
Micro-control via electronic hand-wheels offering the same handling and postioning as with a conventional machine, just smoother and more precise
Ball screws in Z and X axes ensure considerably less errors due to loseness (backlash), resulting in significantly higher precision
A manual central lubrication system simplifies maintenance and supplies all guideways with lubricant
delta servoconventional CNC control
fixed splash guard (wall)
chuck guard
protective shield for support
steady rest
follow rest
coolant system
leadscrew cover
work lamp
manual central lubrication
4-station tool holder
fastening bolts
operator instructions
