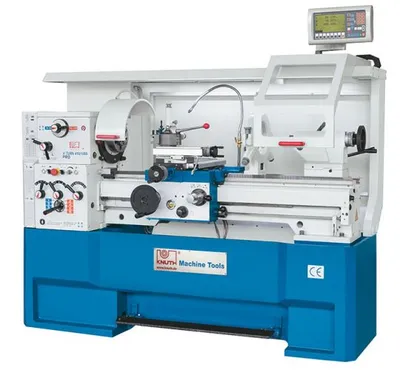

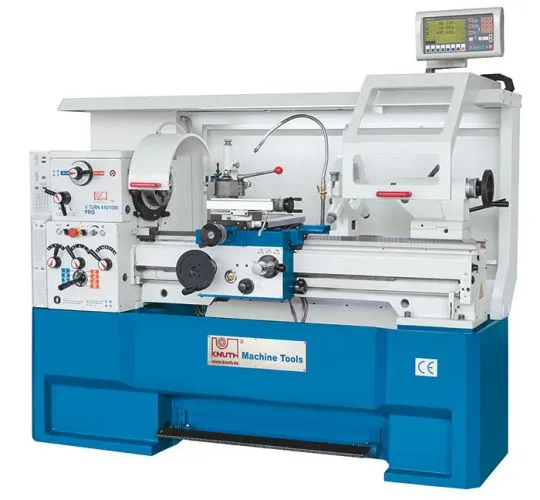

Equipped With
Working Area
Center width
39.37 in
Center height
8 in
Turning diameter over bed
15 in
Turning diameter over gap bridge
23 in
Turning-¯ over support
10 in
Gap bridge length
10 in
Bed width
10 in
Travels
Travel X-axis
8.3 in
Travel Z1-axis
6 in
Swing range of top slide
± 45¡
Headstock
Speed range, high
550 - 3,000 rpm
Speed range, low
30 - 550 rpm
Spindle bore
2 in
Spindle mount
Camlock D1-6
Spindle taper
MT 6
Feed
Feed X-axis
0.00051 - 0.01772 in/R
Feed Z-axis
0.00102 - 0.03543 in/R
Tapping
Tapping, metric
(39) 0.2-14 mm
Tapping, diametric
(21) 8-44 DP
Tapping, module
(18) 0.01 - 0.14 in
Tapping, withworth
(45) 2-72 TPI
Tailstock
Tailstock quill diameter
2 in
Tailstock taper
MT 4
Tailstock quill stroke
5 in
Tailstock traverse adjustment
± 13 in
Drive Capacity
Motor rating main drive
7.4 Hp
Measures and Weights
Overall dimensions (length x width x height)
77x40x60 in
Weight
2,662 lbs
Part No.
300822
Incl. 3-axis position indicator with integrated spindle speed display, fully assembled
The redesigned machine enclosure and added safety features make this machine even more ergonomic, complementing functionality and design
Constant speed: during face turning, the spindle speed automatically adapts to the changing workpiece diameter Ð the constant cutting speed at the cutting edge of the turning tool ensures superior turning results with quality comparable to CNC lathes
A heavily ribbed machine bed, rigid headstock and a massive one-piece cast-iron stand form a solid machine base
Wide, induction-hardened guideways ensure superior turning results and long life

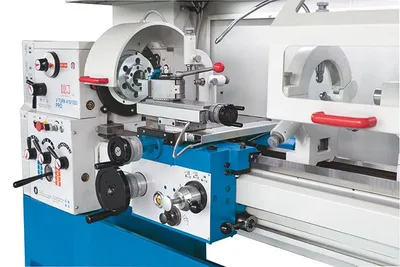

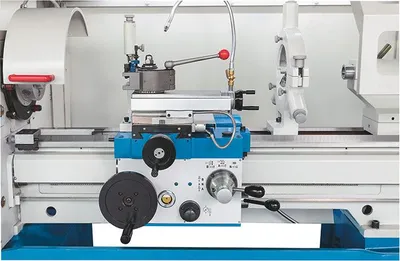

Facing and top slides feature adjustable guideways and spindle nuts
High-precision pre-loaded spindle bearings ensure superior concentricity and load capacity
A powerful 7.4 HP main spindle motor ensures rapid acceleration and powerful chip removal across the entire speed range
Back-gearing ensures high torque for highly efficient machining
Rugged feed switch at the support simplifies operation
The extensive features of the X.Pos Position Indicator are complemented here with a digital speed indicator and an easy to program auxiliary function
3-axis position indicator
More accuracy
Lower error rate
Increased productivity
Resulting in valuable time savings
For increased productivity
Easy to read display
Operator-specific features
Convenient keyboard layout
Resolution: 0.0004 / 0.0002"
Default coordinates
Axis position is maintained when display is turned off
Storage for 10 tools
Radius / diameter toggle
Mm/inch conversion
Display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes
3-axis position indicator
4-jaw face plate chuck ¯ 10 inch
face plate (13" diam.)
change gears
quick-change tool holder head WB
quick change tool holder WBD 25120
coolant system
steady and follow rests
chip tray
fixed splash guard (wall)
protective shield for support
alignment elements
operating tools
operator instructions
