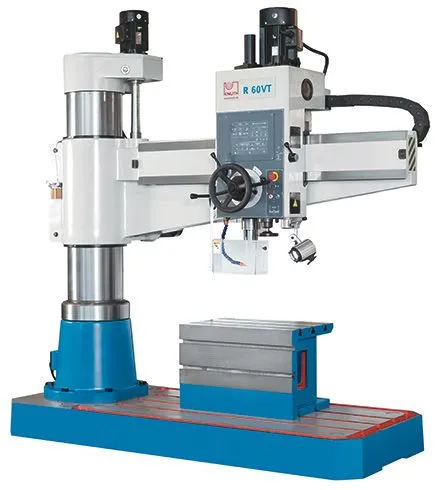

NEW KNUTH R 60 VT

Equipped With
Working Area
Drilling capacity
2.36 in
Tapping capacity, cast-iron
M 50
Tapping capacity, steel
M 45
Drilling depth (max.)
12 in
Throat
14 - 63 in
Spindle nose-to-table surface distance
14 - 49 in
Drill head travel (horizontal)
49 in
Headstock
Speed range
(2) 38 - 2,000 rpm
Spindle mount
MT 5
Feed
Feeds
0 - 11.81 in/min
Drive Capacity
Motor rating main drive
5.4 Hp
Stroke motor
2 Hp
Measures and Weights
Overall dimensions (length x width x height)
99x42x110 in
Weight
8,360 lbs
Part No.
101656
Base, column, boom and gear head are made of premium high-quality cast
Major design features include a large column and a highly torsion-resistant boom
Boom height adjustment via a powerful motorized drive and vertical spindle
The boom lifting gears run in an oil-bath for maximum reliability and minimum wear
Swivel axis and travel axis feature extremely smooth operation to make the operator's everyday production work easier
A central lubrication system ensures reliable lubrication of the column

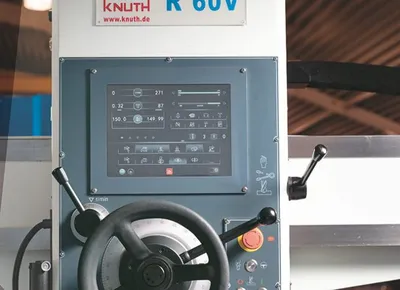

Electronically controlled servo quill feed with large touchscreen display
Drilling depth is electronically set and the input value is checked by the system
Measuring units for input and display can be selected by the operator (mm or inch)
The high-performance coolant system enabled at the touchscreen and will be turned on and off as a function of the main spindle
The machine has 2 gear steps, and the rpm can be infinitely varied and displayed at the monitor
A servo motor provides infinitely variable control of the quill feed - upon reaching the preselected drilling depth, the quill automatically returns to the starting position
Thread cutting is, however, completely manual, i. e., the operator changes the quillÕs rotational direction upon reaching the drilling depth
The operator sets the boom height by touching the respective icon, whereupon the system automatically releases and fixates the hydraulic clamps, turns off the lift motor, and considers all set limit stops
Drill head and column can be clamped/released together or separately
Boom can be moved vertically without losing the spindle-to-bore alignment
The control software also provides recommendations for rpm and feed in relation to the desired drill size
Various alarm screens warn the operator in case of operational errors and display information on the operational state
touch screen control panel
coolant system
cube table
LED work lamp
operator instructions
