Equipped With
Working Area
Speed
38, 19 rpm
Width of vise
6 in
Air supply
87 psi
Air consumption
32 gal/min
Cutting Capacities
Cutting capacity 90¡ - square
4 in
Cutting capacity 90¡ round
4 in
Cutting capacity 45¡ - round
4 in
Cutting capacity 45¡ - square
3 in
Drive Capacity
Main motor rating
1 / 2 Hp
Measures and Weights
Overall dimensions (length x width x height)
45x26x67 in
Weight
682 lbs
Part No.
102139

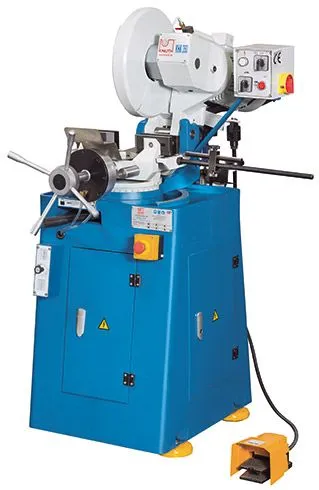

Quick-action vise with pneumatic clamping reduces setup time
Automatic sawing process with infinitely variable feed speed
Two saw blade speeds for optimum cutting results in different materials
Miter cuts up to 45¡
Adjustable saw stroke results in shorter cycle times when cutting small diameter parts
Gears running in oilbath
Includes base and coolant system
quick-action vise
linear stop
foot pedal
base
coolant system
