Equipped With
Working Area
Table set up area
83x20 in
Table load capacity (max.)
4,400 lbs
Number of T-slots
4 positions
T-slots, spacing
0.8 in
Travels
Travel X-axis
59.1 in
Travel Y-axis
26 in
Travel Z-axis
0 - 26 in
Vertical Milling Head
Spindle speed (vertical)
(12) 40 - 1,600 rpm
Spindle mount
ISO 50
Throat
24 in
Vertical spindle-to-table surface distance
0 - 26.38 in
Milling head swivel range
360 deg
Rapid Feed
Rapid Feed X-axis
137.8 in/min
Rapid Feed Y-axis
137.8 in/min
Rapid Feed Z-axis
68.9 in/min
Feed
Feed speed X-axis (infinitely variable)
1 - 71 in/min
Feed speed Y-axis (infinitely variable)
1 - 71 in/min
Drive Capacity
Motor rating main drive
10.1 Hp
Motor rating feed
2.7 Hp
Motor rating coolant pump
0.7 Hp
Measures and Weights
Overall dimensions (length x width x height)
130x94x109 in
Weight
16,060 lbs
Part No.
301285

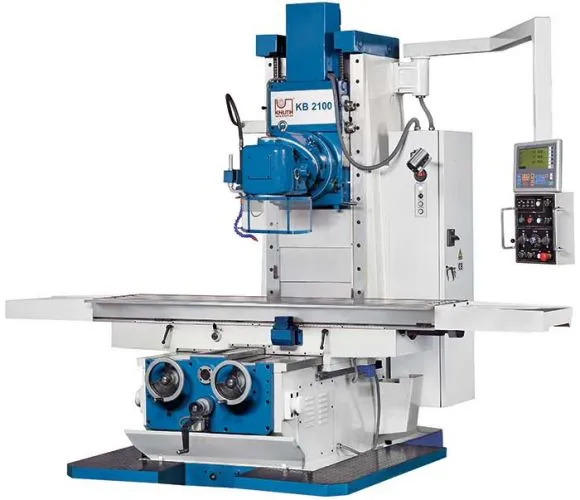

An extremely rigid, large-sized box-column design, made of premium cast-iron, provides a solid base for optimum work results
Extra wide box ways ensure maximum stability and precision at high loads
Extra long table travel distance and large table set-up area allow machining of large single parts or interactive machining of several parts - to give you a leading edge over your competition
Wide spindle speed range from 40 to 1600 rpm
Infinitely variable linear and cross feed
Control panel on a long extending arm that can be ideally positioned by the operator

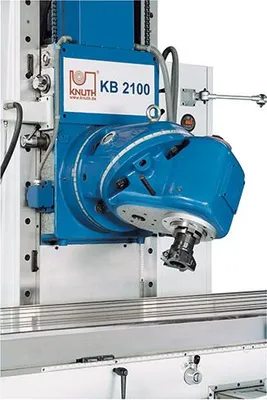

This universal cutter head features maximum rigidity and quiet operation. The angle can be set manually on an infinitely adjustable scale from 90¼ to 45¼. This allows an exact adjustment of the headstock in user-defined spatial angles and easy movement to a horizontal position.

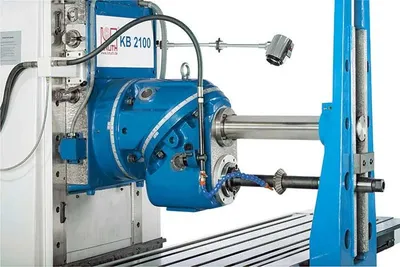

The KB 2100 includes a horizontal cutter arbor holder with excellent rigidity, allowing the user to fully utilize the advantages of a bed-type milling machine design for machining with long cutter arbors.
3-axis position indicator
More accuracy
Lower error rate
Increased productivity
Resulting in valuable time savings
For increased productivity
Easy to read display
Operator-specific features
Convenient keyboard layout
Resolution: 0.0004 / 0.0002"
Default coordinates
Axis position is maintained when display is turned off
Hole circle pattern calculation
Calculator function
Storage for 10 tools
Radius / diameter toggle
Mm/inch conversion
Easy expansion and maintenance-free operation
3-axis position indicator
universal swivel head
coolant system
draw bar
1 milling chuck set ISO 50 (8-piece set: 0.1, 0.2, 0.3, 0.5, 0.6, 0.7, 0.9, 1 inch)
cutter arbor ISO 50 ¯ 1.5"
horizontal arbor holder
horizontal arbor ¯ 1.25"
work lamp
operating tools
foundation bolts M12 x 19.5"
operator manual
