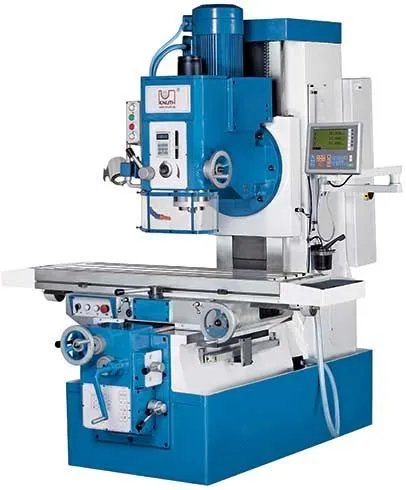

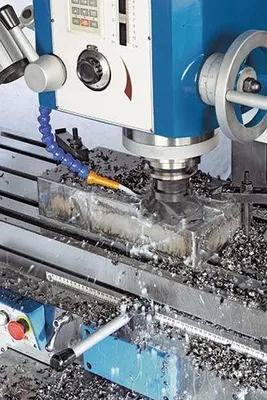

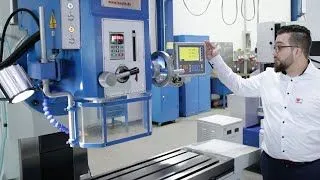

NEW KNUTH KB 1400

Equipped With
Working Area
Spindle axis-to-table surface distance
5.91 - 25.59 in
Number of T-slots
3 positions
Table set up area
55x16 in
T-slots, width
0.7 in
T-slots, spacing
3.9 in
Speed height-adjustment (max.)
65.75 in/min
Travels
Travel X-axis
37.4 in
Travel Y-axis
16 in
Travel Z-axis
20 in
Vertical Milling Head
Spindle mount
ISO 50
Throat
20 in
Spindle speed (vertical)
30 - 1,800 rpm
Quill stroke
4 in
Head swivel range
± 45¡
Rapid Feed
Rapid Feed X-axis
65.75 in/min
Rapid Feed Y-axis
65.75 in/min
Rapid Feed Z-axis
65.75 in/min
Feed
Feed speed X-axis
(9) 1 - 25 in/min
Feed speed Y-axis
(9) 1 - 25 in/min
Feed speed Z-axis
1 - 25 in/min
Drive Capacity
Motor rating main drive
10.1 Hp
Motor rating feed
1 Hp
Motor rating for Z-axis drive
1 Hp
Motor rating coolant pump
0.1 Hp
Measures and Weights
Flow rate, coolant pump
3 gal/min
Overall dimensions (length x width x height)
91x70x84 in
Weight
8,052 lbs
Part No.
301320
Only the cutter head - not the machine table - moves on the Z axis. This results in improved stability, less vibration, and ultimately in increases precision and extremely high table load capacity! This effect is emphasized even more by the large, heavy cast-iron frame (Meehanite) and extremely wide box ways.
Infinitely variable speed adjustment provided through frequency drive
Rigid rectangular guideways for long-lasting accuracy
Meehanite cast-iron frame
Cutter head swivels ± 45¡
Hardened and ground guide ways on all axis
Standard 3-axis position indicator
3-axis position indicator
More accuracy
Lower error rate
Increased productivity
Resulting in valuable time savings
For increased productivity
Easy to read display
Operator-specific features
Convenient keyboard layout
Resolution: 0.0004 / 0.0002"
Default coordinates
Axis position is maintained when display is turned off
Hole circle pattern calculation
Calculator function
Storage for 10 tools
Radius / diameter toggle
Mm/inch conversion
Easy expansion and maintenance-free operation
3-axis position indicator
collet chuck with collets (0.16",0.2",0.24",0.31",0.39",0.47",0.55",0.63" diam.)
reducing sleeves MT4, MT3, MT2
cutter arbor ¯ 1.5"
coolant system
work lamp
central lubrication
operating tools
operator manual
