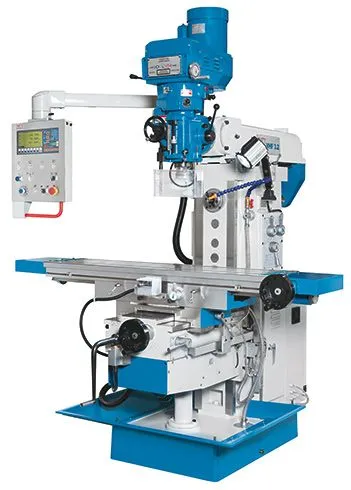

Equipped With
Working Area
Table set up area
54x13 in
Table load capacity (max.)
660 lbs
Number of T-slots
3 positions
T-slot (width x spacing)
0.55x3.15 in
Milling table swivel range
45 deg
Travels
Travel X-axis
39.4 in
Travel Y-axis
14 in
Travel Z-axis
16 in
Vertical Milling Head
Speed range
50 - 3,750 rpm
Spindle mount
ISO 40
Throat
7 - 34 in
Vertical spindle-to-table surface distance
6.3 - 22.05 in
Milling head swivel range
90 deg
Cutter head tilt angle
45 deg
Rapid Feed
Rapid feed X-/ Y-axis
53 in/min
Rapid Feed Z-axis
39.37 in/min
Horizontal milling heada
Spindle speeds
(12) 35 - 1,500 rpm
Spindle mount
ISO 40
Horizontal spindle-to-table surface distance
3 - 19 in
Feed
Feed speed X-axis
(8) 1 - 33 in/min
Feed speed Y-axis
(8) 1 - 33 in/min
Feed speed Z-axis
(8) 1 - 25 in/min
Drive Capacity
Main drive motor rating (vertical)
5 Hp
Main drive motor rating (horizontal)
4 Hp
Measures and Weights
Overall dimensions (length x width x height)
75x69x93 in
Weight
4,290 lbs
Part No.
301411

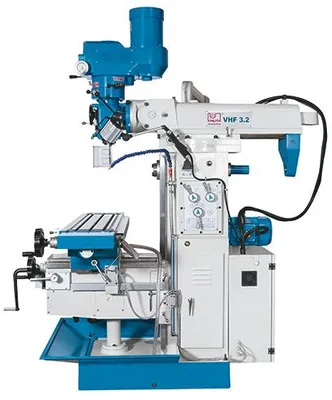

Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing
Quiet, precision-made headstock gears with hardened and ground gears
The milling table features a large setup area and can be rotated in linear direction
The cutter head quill features a 3-step automatic feed and automatic depth shut-off, but can also be moved manually
For angular bores, the vertical cutter head swivels in two directions: r + l ±90¡; tilt fwd + rev ±45¡
Spindle speed of vertical cutter head is infinitely variable over a wide speed range; an auxiliary gearbox ensures powerful torque
Vertical and horizontal spindle each have their separate drive
Standard outer arbor support with bronze plain bearings accommodates long milling arbors in the horizontal spindle
Powerful axis servo-motors allow infinite adjustment of feeds on all 3 axes
Minimum downtime due to rapid positioning of work table and rapid feeds in all axes
Control panel swivels for comfortable operation
Coolant system and chip tray are included
chip tray
coolant system
central lubrication
3-axis position indicator
operator instructions
M16 draw bar
operating tools
cutter arbor ¯ 1"
