Equipped With
Working Area
Grinding diameter
7.9 in
Workpiece length (max.)
20 in
Outside grinding measure, maximum
¯ 0.2-2. x 15.8 in
Inside grinding measures, optimal
¯ 0.4-2 x 3 in
Tool grinding measure
8x20 in
Grinding length
8 in
Work piece length surface grinding
8 in
Work piece width surface grinding
2 in
Work piece weight (max.)
22 lbs
Table swivel range (max.)
+45¡ / -30¡
Travels
Travel Z-axis
19 in
Feed
Feed per hand-wheel rotation X-axis, fine
0.0394 in
Feed per hand-wheel rotation X-axis, rough
0.1575 in
Feed per scale division X-axis, fine
0.0002 in
Feed per scale division, X-axis, rough
0.00079 in
Scale division of height adjustment
0.00039 in
Longitudinal feed speed (hydraulic)
0 - 234 in/min
Manual, hydraulic assist
273 in/min
Headstock
Working headstock swivel range
± 90¡
Working spindle speed
(3) 110 - 300 rpm
Working spindle taper
MT 2
Chuck diameter
4 in
Grinding headstock
Grinding spindle speed
2,500 rpm
Inside grinding spindle speed
13,500 rpm
Grinding headstock swivel range
± 90
Grinding headstock - vertical / - transverse
8 in
Tailstock
Height adjustment per handwheel rotation
0.04 in
Tailstock taper
MT 2
Tailstock quill stroke
1 in
Drive Capacity
Machine drive capacity
3.4 Hp
Motor rating main drive
1.5 Hp
Measures and Weights
Grinding wheels dimensions
8x1x3 in
Grindstone dimensions, inside grinding (min.)
0.4x0.4x0.1 in
Grindstone dimensions, inside grinding (max.)
1x0.8x0.2 in
Overall dimensions (length x width x height)
60x54x56 in
Weight
2,860 lbs
Part No.
102781

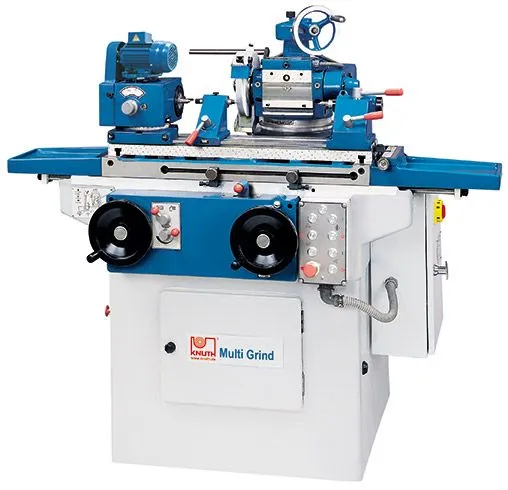

Ideal for tool and die construction, mechanical production, design processes. laboratories and training

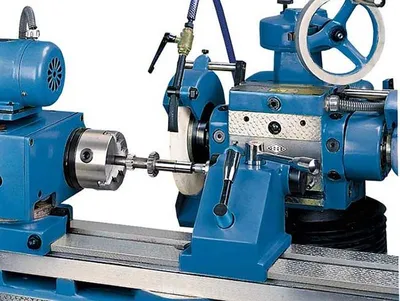

The functionality of the Multi-Grind ranges from external and internal cylindrical grinding to taper grinding. The Multi-Grind also allows easy tool grinding (sharpening of cutters, reamers and turning tools) and is suitable for light surface grinding job
Three-Point Bearing
The custom three-point bearing of the grinding spindle ensures minimum temperature effects and consistent grinding quality.
Feed Drives
Hydraulic table feed (longitudinal) with automatic change of direction. An additional manually operated longitudinal feed with hydraulic support allows feed speeds up to 275"/min.

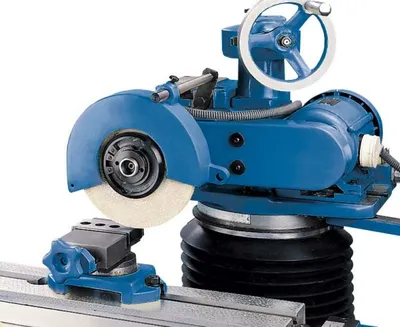

Grinding Headstock Special grinding headstock design allows simultaneous setup of 2 different grinding wheels. The grinding headstock can be moved in transverse direction and also vertically; and it can be rotated around the vertical axis.
Speeds
The headstock operates at 3 different speeds (110, 200, 300 rpm) which are set through an easy to operate gear shift lever.
Additional Features...
- central lubrication system
- sturdy construction - the KNUTH Multi-Grind body is made of solid cast-iron and weight 2860 lbs; minimizes vibration effects
- electrical components are mounted easily accessible in a control cabinet
coolant system
exhaust vacuum
tool mount / indexing head MT 4
internal grinding unit including 2 die grinders
3-jaw chuck (4" diam.)
left tailstock
right tailstock MT 2
center point
half center points
balancing station
spindle extension
vise for surface grinding (3-D angle adjustment)
spring stop
5 drivers
various splash guards
grinding wheel guard (2x)
automatic central lubrication
operator manual
test certificate
