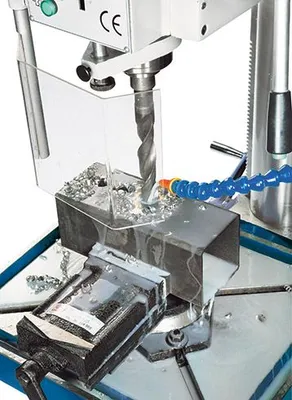

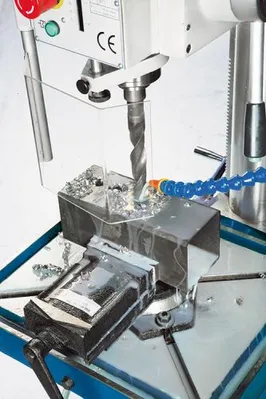

NEW KNUTH SSB 40 XN

Equipped With
Working Area
Drilling capacity
1.57 in
Tapping capacity, steel
M 24
Table set up area
22x19 in
Table stroke
18 in
Quill stroke
7 in
Table swivel range (max.)
± 45¡
Spindle nose-to-table distance (max.)
24 in
Spindle nose-to-foot distance
47 in
Throat
14 in
Column diameter
6 in
Headstock
Spindle mount
MT 4
Spindle speed
(12) 60 - 2,300 rpm
Feed
Quill feeds
0,005; 0,01; 0,02 / 0,12 in/R in/R
Drive Capacity
Main motor rating
1.6 / 2.1 Hp
Measures and Weights
Overall dimensions (length x width x height)
39x23x90 in
Weight
1,210 lbs
Part No.
162338
Heavy cast-iron construction with thick-walled column
Tapping feature
Automatic drill feeds controlled by an electromagnetic clutch
Includes coolant system and work lamp
Table rotates and swivels ±45¡
tapping unit
protective shield
LED work lamp
coolant system
operating tools
operator manual
