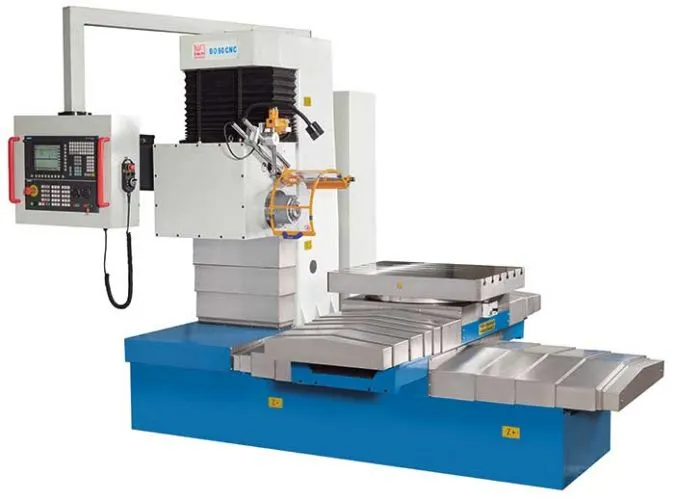

Equipped With
Working Area
Drilling capacity
1.18 in
Finish bore
8 in
Milling capacity
55
Table load capacity
2,200 lbs
Table dimensions
25x31 in
Number of T-slots
6 positions
T-slots, width
0.7 in
Spindle axis-to-table surface distance
22.44 in
Table rotation range (5¡ units)
360
Travels
Travel X-axis
27.6 in
Travel Y-axis
20 in
Travel Z-axis
31 in
Headstock
Spindle speed
10 - 6,000 rpm
Spindle mount
BT 40
Feed
Feed speed X-axis
0 - 79 in/min
Feed speed Y-axis
0 - 79 in/min
Feed speed Z-axis
0 - 79 in/min
Accuracies
Positioning accuracies
± 0.0003 in
Repeatabilities
0.0002 in
Angular accuracy
± 3"
Drive Capacity
Motor rating main drive
14.8 Hp
Measures and Weights
Overall dimensions (length x width x height)
140x93x83 in
Weight
10,560 lbs
Part No.
180027

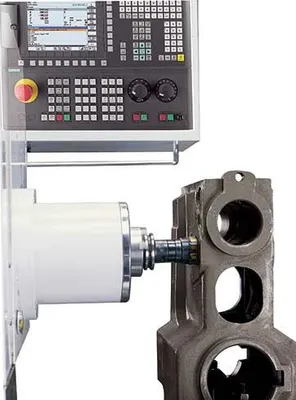

Heavy-duty cast-iron machine frame plus wide guide ways
Manually indexable rotary table, divisions in 5¼ increments
Provides long travels on all axis and high table load capacity for machining of large parts
Powerful servo-drives and preloaded ball screws with large diameters ensure precision at high travel speeds
BT 40 spindle mount with automatic tool clamping
Pneumatic rotary table ensures maximum angular accuracy and provides simple adjustment of angle settings
A Siemens 828 D control with servo-driven axes meets all requirements of an advanced CNC concept in programming and handling
Compact, rugged and maintenance-free operator-panel CNC with dedicated system software for turning, milling and grinding technologies
High-quality, rugged, magnesium die-cast operator panels with degree of protection IP65
Maintenance-free operator panel front, e.g. no fan, battery or hard disk
Highest machining precision with 80-bit NANOFPaccuracy
New user interface SINUMERIK Operate Ð same look and feel as SINUMERIK 840D sl
ShopTurn/ShopMill (option): Very fast programming time in the production of individual parts and small batches
Advanced Surface: Innovative, high-performance CNC functions provide top quality of workpiece surface with minimum machining times
Technology package SINUMERIK MDynamics with the new function Advanced Surface: Perfect workpiece surfaces and very fast machining times in molded part production
programGUIDE: fastest machining time and maximum flexibility for large series productions
Unique spectrum of technology cycles Ð ranging from the machining of any turning and milling contour with residual material detection to in-process measurements
G-Tech is a grinding package with an extensive scope of CNC functions ranging from the low-cost entry-level model up to highly productive machines
Animated Elements: Unique operating and programming support with moving picture sequences
modern data transfer options via USB stick, CF card and network (Ethernet)
SINUMERIK Integrate for production Access MyMachine /Ethernet permits remote diagnostics from anywhere in the world
Easy Message: Integrated mobile radio modem for optimum process monitoring and maximum machine availability via text messages (SMS)
Easy Extend: Flexible handling of machine units, e.g. an A axis/parts machine
Maintenance scheduler: Signaling of pending maintenance tasks in accordance with specified maintenance intervals
Functions
Operator panel variants for horizontal or vertical operator panel housings
Proximity/clearance sensor for smart display control
Integrated QWERTY full CNC keyboard with short-stroke keys
Additional Ethernet interface at the rear of the CNC for connection to factory network
Additional USB interface at the rear of the CNC for machine control panel
Integrated PLC based on the SIMATIC S7-200 command set with ladder logic programming
I/O interface based on PROFINET for the connection of PLC I/O devices and a machine control panel
Up to 5 axes/spindles
1 analog spindle
1 machining channel/mode group
Integrated tool management with tool life monitoring
Configurable user screens with SINUMERIK Integrate for engineering Run MyScreens (Easy Screen)
SINUMERIK Integrate for engineering Run MyRobot /EasyConnect for simple interfacing of robots and handling systems
Integrated data archiving procedure for simple data updates
Siemens 828 D Basic control
pneumatic rotary table
electronic hand-wheel
halogen lights
central lubrication
drill chuck .12 - .63 in / B18
tool-holder bits MT4 / B18
reducing sleeves MT3, MT4, MT5
foundation bolts
operating manual and programming instructions
