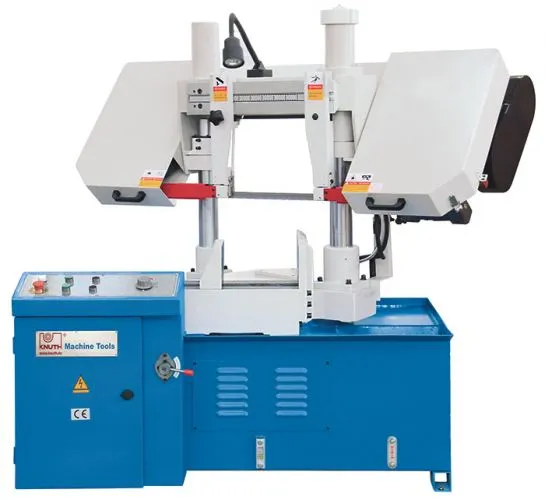

NEW KNUTH HB 280 TG

Equipped With
Cutting Capacities
Cutting speed
1063,1772,2717 fpm
Working height
27 in
Cutting capacity 0¡ (round)
11 in
Cutting capacity 0¡ (square)
11 in
Cutting capacity 0¡ (flat)
13x11 in
Cutting capacity 30¡ (round)
10 in
Cutting capacity 30¡ (square)
10 in
Cutting capacity 30¡ (flat)
10x11 in
Cutting capacity 45¡ - round
7 in
Cutting capacity 45¡ - square
7 in
Cutting capacity 45¡ - flat
7x11 in
Drive Capacity
Motor rating main drive
4 Hp
Motor rating hydraulic pump
0.7 Hp
Motor rating coolant pump
0.1 Hp
Measures and Weights
Belt dimensions
142.72x0.04x1.06 in
Overall dimensions (length x width x height)
85x52x63 in
Weight
1,804 lbs
Part No.
152827
The machine frame is designed as a torsion-resistant dual-column construction for maximum stability and accuracy
A user-friendly control panel with intuitive user controls is integrated into the control cabinet
Hydraulically controlled saw blade feed allows exact feed adjustments
At the end of each sawing cycle, the saw blade frame will return to the home position
A hydraulically tensioned vise ensures reliable workpiece fixation
Rigid saw blade guides are easily adjustable
A high-performance coolant system and a mobile workpiece support base are part of the standard equipment
bimetallic band saw blade
hydraulic vise
work lamp
coolant system
material support base with roller
operating tools
operator manual
