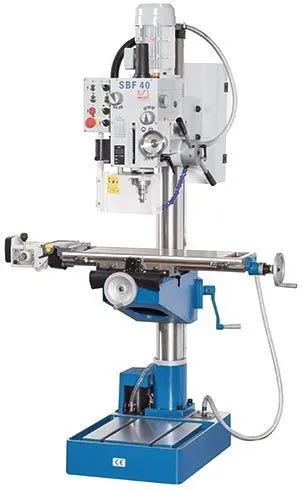

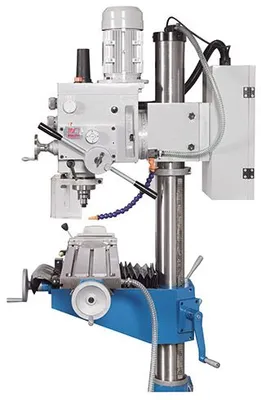

NEW KNUTH SBF 40 TV 1000

Equipped With
Working Area
Table set up area
29x8 in
Table load capacity (max.)
220 lbs
Number of table T-slots
3 positions
T-slot table (width x spacing)
0.55x2.48 in
T-slot foot (qty)
2 positions
T-slot foot (width x spacing)
0.55x7.87 in
Quill stroke
5 in
Throat
11 in
Column diameter
5 in
Spindle nose-to-table surface distance
24 in
Spindle nose-to-foot distance
46 in
Drilling capacity
1.57 in
Drilling capacity in steel / ST37
2 in
Head swivel range
± 45¡
Tapping capacity, steel
(ST 37) M16
Travels
Travel X-axis
19.7 in
Travel Y-axis
7 in
Z1 / Z2 axis travel
21 in
Headstock
Speed range
(12) 75 - 3,200 rpm
Spindle mount
MK 4
Rapid Feed
Rapid feed
24 in/min
Feed
Work feed
0 - 17 in/min
Drive Capacity
Motor rating main drive
2 Hp
Main drive, continuous load
1.48 Hp
Motor rating coolant pump
0.1 Hp
Measures and Weights
Overall dimensions (length x width x height)
33x30x73 in
Weight
858 lbs
Part No.
101573
Drilling and Milling - A true added value for a low price
Large compound sliding table with automatic infinitely variable feed on X for coordinate drilling and light milling work
Quiet operation with oil-bath lubricated gears for long tool life and durability
The milling machine's high-quality spindle bearing can withstand higher loads for the long term
Manual drill feed can be switched to high-precision feed via a hand-wheel
Controllable automatic feed with 3 gear steps
Adjustable height of gear head and table
Table guides are adjustable with high precision via taper gibs
Gear head swivels to both sides
Cutter mounts are secured by a drawbar
Tapping feature
Integrated coolant system
tapping unit
table feed TV 1000
draw bar
drill chuck
tool-holder bits
coolant system
operator manual
