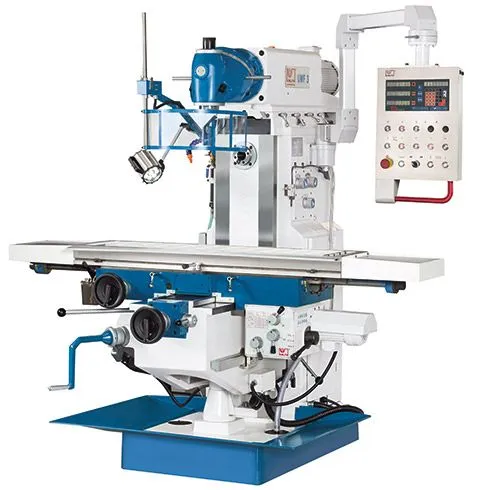

Equipped With
Working Area
Table set up area
52x13 in
Table load capacity (max.)
572 lbs
Number of T-slots
5 positions
T-slots, width
0.6 in
T-slots, spacing
2.5 in
Travels
Travel X-axis
39.4 in
Travel Y-axis
10 in
Travel Z-axis
18 in
Horizontal spindle
Spindle speed (horizontal)
(12) 40 - 1,300 rpm
Spindle mount
ISO 40
Horizontal spindle-to-table surface distance
1 - 19 in
Vertical Milling Head
Spindle speed (vertical)
(11) 45 - 1,660 rpm
Spindle mount
ISO 40
Throat
8 - 30 in
Spindle nose-to-table surface distance
8 - 26 in
Milling head swivel range
360 deg
Rapid Feed
Rapid Feed X-axis
47.24 in/min
Rapid Feed Y-axis
47.24 in/min
Rapid Feed Z-axis
15.75 in/min
Feed
Feed speed X-axis
(8) 1 - 14 in/min
Feed speed Y-axis
(8) 1 - 14 in/min
Drive Capacity
Motor rating horizontal spindle
4 Hp
Motor rating vertical spindle
4 Hp
Motor rating X-axis
0.7 Hp
Motor rating Y
0.7 Hp
Motor rating coolant pump
0.1 Hp
Measures and Weights
Overall dimensions (length x width x height)
79.527x67.323x78.346 in
Weight
4,400 lbs
Part No.
370297
Sturdy, zero-backlash rectangular guideways

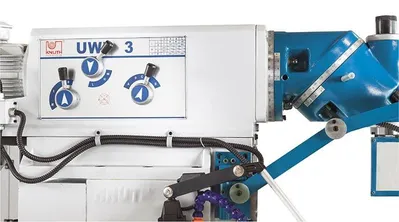

Universal cutter head with 2 levels can be adjusted to virtually any angle (HURON System)
Rapid feeds on all axes allow quick positioning
Control panel swivels for comfortable operation

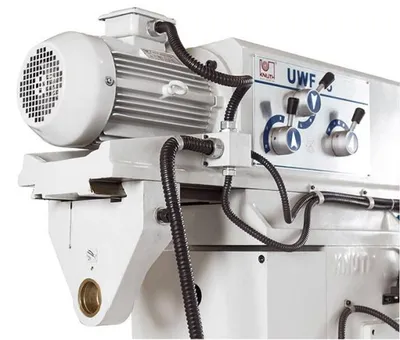

Separate drives with gearbox for powerful material removal
Large machine table with one 39" X travel
3-axis position indicator
More accuracy
Lower error rate
Increased productivity
Resulting in valuable time savings
For increased productivity
Easy to read display
Operator-specific features
Convenient keyboard layout
Resolution: 0.0004 / 0.0002"
Default coordinates
Axis position is maintained when display is turned off
Hole circle pattern calculation
Calculator function
Storage for 10 tools
Radius / diameter toggle
Mm/inch conversion
Easy expansion and maintenance-free operation
3-axis position indicator
central lubrication
coolant system
work lamp
collet chuck with collets (0.16",0.2",0.24",0.31",0.39",0.47",0.55",0.63" diam.)
horizontal arbor ¯ 1" and ¯ 1.5"
outer arbor support for horizontal milling
short milling arbor 1.25"
operating tools
operator manual
