Equipped With
Working Area
Table dimensions
16x6 in
Table load capacity
44 lbs
Number of T-slots
3 positions
T-slots, width
0.5 in
T-slots, spacing
1.6 in
Spindle nose-to-table surface distance
2 - 9 in
Throat
7 in
Travels
Travel X-axis
9.9 in
Travel Y-axis
6 in
Travel Z-axis
7 in
Headstock
Spindle speed
5,000 rpm
Spindle mount
ISO 20
Rapid Feed
Rapid Feed X-axis
78.74 in/min
Rapid Feed Y-axis
78.74 in/min
Rapid Feed Z-axis
78.74 in/min
Feed
Work feed X-axis
39 in/min
Work feed Y-axis
39 in/min
Work feed Z-axis
39 in/min
Max. torque feed motor X-axis
19.47 ft.lb.
Max. torque feed motor Y-axis
19.47 ft.lb.
Max. torque feed motor Z-axis
19.47 ft.lb.
Tool Head
Number of tool stations
4 positions
Tool size ¯ x L (max.)
0.39x4.33 in
Tool weight max.
1 lbs
Tool-change time tool/tool
10 sec
Accuracies
Positioning accuracy X-axis
± 0,015 in
Positioning accuracy Y-axis
± 0,015 in
Positioning accuracy Z-axis
± 0,015 in
Repeatability X-axis
± 0,01 in
Repeatability Y-axis
± 0,01 in
Repeatability Z axis
± 0,01 in
Drive Capacity
Motor rating main drive
1.3 Hp
Measures and Weights
Overall dimensions (length x width x height)
56x36x73 in
Weight
946 lbs
Part No.
181615

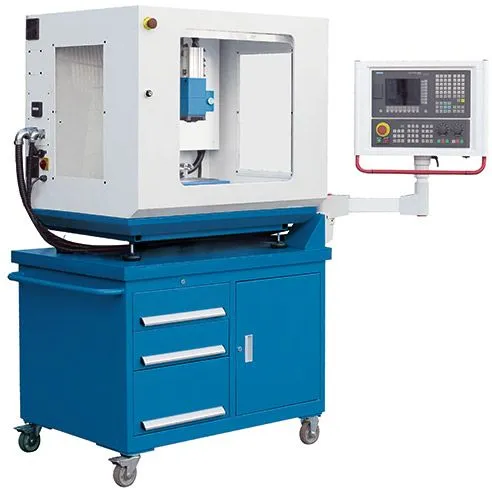

Precisely machined frame made of high-quality cast iron
Dovetail guides and preloaded ball screws with servo drives on all axes
Max. spindle speeds up to 5000 rpm
Electronic hand-wheel for efficient and professional set-up
4-station tool changer ensures flexibility and optimum productivity
Modern safety concept provides easily accessible enclosure and pneumatically opened door
Mobile base with storage room for tools and materials
Compact and User-friendly solution for milling applications
Highlights
Easy to use, dialog-guided user interface
Comprehensive bandwidth of technology cycles
High performance and precision
The CNC SINUMERIK 808D Milling comes preconfigured and is perfectly suited for standard milling machine applications. The SINUMERIK 808D Milling features the Advanced Surface smart motion control from the SINUMERIK MDynamics technology suite. Also included is the Look Ahead function, which allows optimum speed control to ensure superior surface quality.
SINUMERIK Operate BASIC
Easy, intuitive user interface with dialog-guided user support. The menu structure of the completely updated Sinumerik Operate Basic has been closely adapted to the larger Sinumerik Operate system's menu
SINUMERIK programGUIDE BASIC
The "programGuide Basic" simplifies programming by adding graphically supported cycle masks and a practical contour calculator
SINUMERIK MDynamics
Includes the new Advanced Surface functionality for smart motion control - ensures perfect workpiece surfaces combined with significantly reduced machining times
What makes the Siemens 808D so great?
Self-explanatory use and powerful CNC functions ensure highest workpiece precision and short machining times
Allows re-using of part programs from other controls that support ISO code
DIN and ISO programming code can be alternated within one program
The USB port at the front panel provides a connector for USB memory sticks for easy transfer of parts programs and tool data during everyday operation
Just as the high/end Siemens CNCs, this series features ergonomically designed rotary override switches
Microswitch keys of the membrane keyboard ensure excellent tactility
Precision and Productivity
Calculations are performed with 80-Bit NanoFP accuracy without any internal rounding errors
The 808D comes with the intelligent MDynamics motion control, including smart "Look-Ahead" function for optimized speed guidance - allowing increased productivity and perfect surface quality
The 808 series features powerful computing capacity and advanced technology cycles for superior performance
Siemens 808D Advance control
electronic hand-wheel
4-station tool changer
pneumatic door
mobile base
central lubrication
work lamp
operating tools
operating manual and programming instructions
