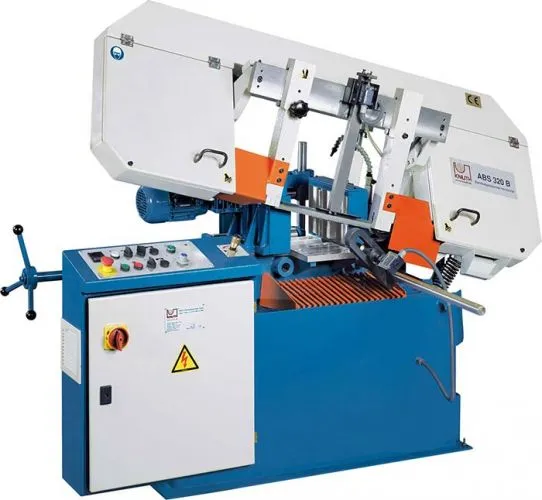

NEW KNUTH ABS 320 B

Equipped With
Working Area
Roller guide length
47 in
Feed rollers
6 positions
Cutting Capacities
Cutting capacity 90¡ round
13 in
Cutting capacity 90¡ - square
12 in
Cutting capacity 90¡ - flat
13x8 in
Stop length
20 in
Cutting speed
65.4 - 327 fpm
Accuracy of the feeding
0.02 in
Drive Capacity
Motor rating main drive
3 Hp
Motor rating hydraulic pump
0.5 Hp
Motor rating coolant pump
0.2 Hp
Motor rating feed
0.3 Hp
Measures and Weights
Blade dimensions
144.09x1.06x0.04 in
Overall dimensions (length x width x height)
73x34x50 in
Weight
1,452 lbs
Part No.
152755
Saw frame and machine bed are made of premium cast-iron for torsion-free performance even under maximum loads
New helical gears ensure above-average service life and low maintenance
Infinitely variable saw frame feed
Large size hydraulic cylinder for constant quiet operation
Automatic adjustment of cutting height

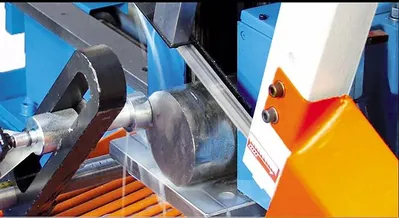

A bundle vise is provided for cutting entire material packs to length
automatic band break control
bundle vise
coolant system
operating tools
operating tools
saw-band
chip wiper
feed roller table 47"
operator instructions
operator manual
