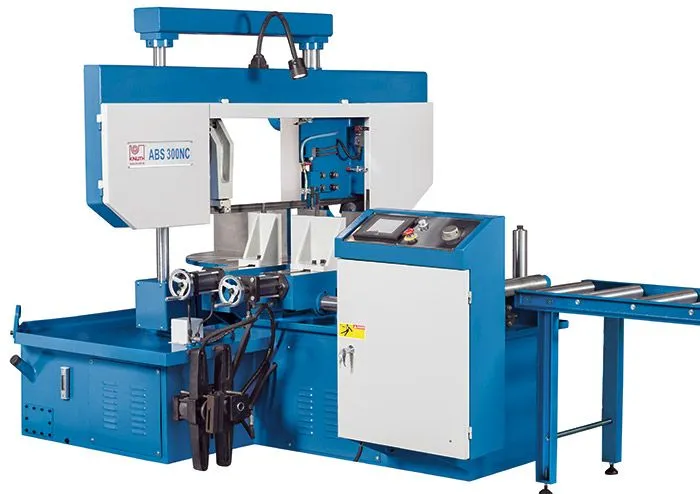

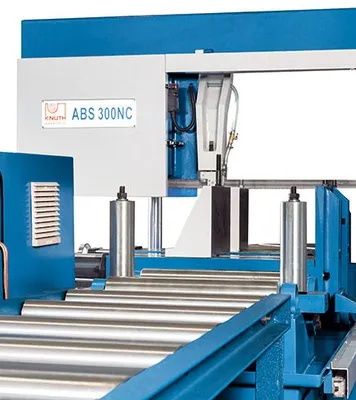

NEW KNUTH ABS 300 NC

Equipped With
Cutting Capacities
Feed per scale division X-axis
15.75 in
Cutting speed
65.4 - 294.3 fpm
Cutting capacity 0¡ (round)
12 in
Cutting capacity 0¡ (flat)
14x12 in
Cutting capacity 0¡ (square)
12 in
Cutting capacity 30¡ (round)
12 in
Cutting capacity 30¡ (flat)
12x12 in
Cutting capacity 30¡ (square)
12 in
Cutting capacity 45¡ - flat
9x12 in
Cutting capacity 45¡ - round
9 in
Cutting capacity 45¡ - square
9 in
Drive Capacity
Motor rating main drive
4 Hp
Motor rating hydraulic pump
1 Hp
Motor rating coolant pump
0.1 Hp
Measures and Weights
Blade dimensions
174.41x1.34x0.04 in
Overall dimensions (length x width x height)
87x79x67 in
Weight
4,180 lbs
Part No.
152880
Cutting angle settings 0¡ - 45¡
Robust touch screen control panel
Automatic workpiece feed
Torsion-resistant dual-column construction
Hydraulic saw frame feed via chrome-plated column guide
Slightly inclined saw frame improves cutting performance and increases the service-life
Dual hydraulic workpiece clamping
Infinitely variable cutting speed
Programmable automatic angle positioner can be set in 1¡ increments from 0¡ to 45¡
Hydraulic bundle vise for both vises included with standard equipment
Precise and stable saw band guides ensure
high angular accuracy
Automatic band breakage control
Infinitely variable saw blade speed with settings shown on the display
Reliable Siemens SIMATIC S7-200 SMART PLC with rugged touchscreen input panel
In Manual Mode, all machine functions can be selected and adjusted via touchscreen
In Auto Mode, feed distance, cut angle, and number of cuts can be programmed within the respective configurations
Up to 5 different angle and distance settings can be linked within one automatic program cycle
The programmable automatic angle positioner can be set in 1¡ increments from 0¡- 45¡
Infinitely adjustable saw blade speed with settings shown on the display
Individual lengths and miter angles, and the number of required steps can be entered for each cut
Cut widths can be compensation centrally without considering the programmed workpiece lengths
All machine parameters can be checked by the operator via user-friendly menus
Quick fault diagnostics with clear fault description on the display
siemens PLC control
autom. cleaning brush
feed roller table (6.5 feet)
1 saw blade
touch screen monitor
central lubrication
automatic parts counter
bundle vise
chip conveyor
coolant system
operating tools
operator manual
