Equipped With
Working Area
Table set up area
54x12 in
Table load capacity (max.)
660 lbs
Number of T-slots
3 positions
T-slot (width x spacing)
0.55x3.15 in
Milling table swivel range
45 deg
Travels
Travel X-axis
39.4 in
Travel Y-axis
14 in
Travel Z-axis
16 in
Vertical Milling Head
Speed range
(11) 45 - 1,660 rpm
Spindle mount
DIN 2080 / ISO 40
Throat
6 - 22 in
Vertical spindle-to-table surface distance
3.94 - 19.69 in
Milling head swivel range
360 deg
Rapid Feed
Rapid feed X-/ Y-axis
53 in/min
Rapid Feed Z-axis
39.37 in/min
Feed
Feed speed X-axis
(9) 1 - 33 in/min
Feed speed Y-axis
(9) 1 - 33 in/min
Feed speed Z-axis
1 - 25 in/min
Drive Capacity

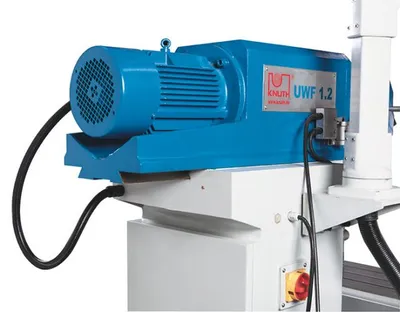

Motor rating main drive
4 Hp
Measures and Weights
Overall dimensions (length x width x height)
73x70x67 in
Weight
3,850 lbs
Part No.
362694

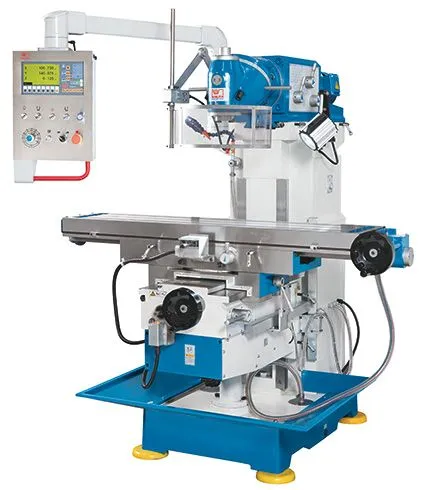

Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing
Large rectangular guideways ensure precision and quiet operation within permissible high loads
Universal cutter head swivels on 2 planes - quick change-over from horizontal to vertical machining
By combining both swivel levels, almost
any angle can be set
Outer arbor support for horizontal milling, mounts to cutter head

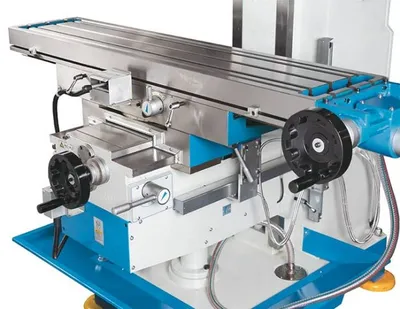

The milling table features a large setup area and can be rotated in linear direction
Precision-ground guideways with hardened surfaces for long term accuracy and wear resistance
Quiet, precision-made headstock gears with hardened and ground gears
Powerful servo-motor for infinite variation of feeds in all 3 axes
Minimum downtime due to rapid positioning of work table and rapid feeds in all axes
Control panel swivels for comfortable operation
Coolant system and chip tray are included
chip tray
coolant system
central lubrication
3-axis position indicator
operator manual
M16 draw bar
operating tools
outer arbor support for horizontal milling
