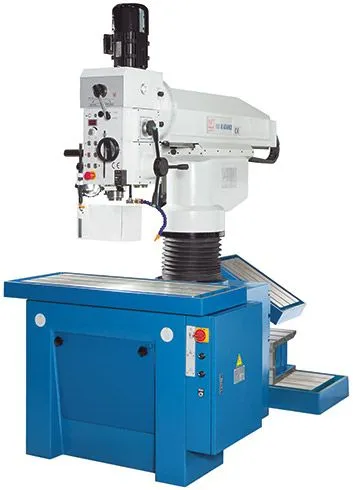

NEW KNUTH KSR 40 ADVANCE

Equipped With
Working Area
Drilling capacity
1.57 in
Tapping capacity, steel
M 30
Throat
37 in
Spindle nose-to-table surface distance
31 in
Column stroke
15 in
Quill stroke
8 in
Head swivel range
± 90¡
Column diameter
9 in
Table set up area
47x20 in
Number of T-slots
3 positions
T-slots, width
0.7 in
Travels
Upper beam travel
23 in
Headstock
Spindle mount
4 MT
Spindle speed (infinitely variable)
50 - 2,000 rpm
Feed
Feeds
(6) 0 - 0.02 in/R
Drive Capacity
Motor rating main drive
3 Hp
Motor rating height adjustment
2 Hp
Motor rating coolant pump
0.5 Hp
Measures and Weights
Overall dimensions (length x width x height)
68x48x89 in
Weight
6,028 lbs
Part No.
162363
Powerful machine for drilling, tapping, countersinking and boring
Large travel ranges and many different machining stations provide maximum setup and machining possibilities
Extremely sturdy construction ensures high accuracy and reliability
Quick and precise tool positioning: hydraulic clamping is released by the push of a button, head easily swivels forward, backward and horizontally
Motorized up and down movement of drill head
Height can be adjusted without changing the drilling position
Provides great flexibility when machining large parts
Drill head swivels ±90 degrees
Automatic feed with depth stop trigger
Thick-walled column and large dimensions of all components ensure maximum accuracy
Digital boring depth display
Infinitely variable spindle speed with digital display and a digital drilling depth indicator provide extra convenience for the operator
digital speed indicator
additional setup areas at the side and rear
cube table
swiveling horizontal table
digital boring depth indicator
work lamp
coolant system
tapping unit
drill chuck with tool-holder bits
reducing sleeves
operating tools
operator manual
