USED US INDUSTRIAL US224M
Specs
Equipped With

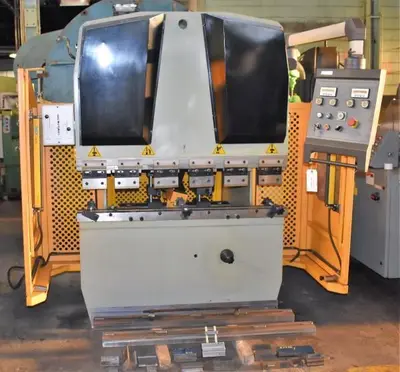

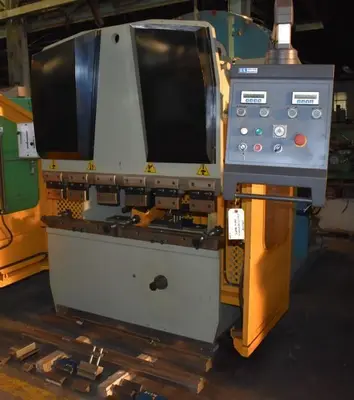

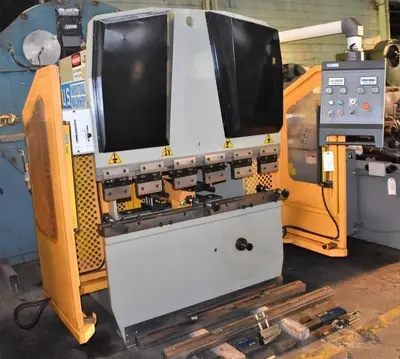

22 TON X 4' U.S. INDUSTRIAL MODEL US224M CNC HYDRAULIC PRESS BRAKE
EQUIPPED WITH:
24" 2-Axis Simple CNC Back Gauge And Ram Control
Power Ram Depth Control
Sick "C2000" Light Curtain
Space Between Ram Tool Clamps Allows For Deep Box Bending
Some Dies & Clamps
CATALOG SPECIFICATIONS:
Tonnage Capacity
22 TONS
Overall Length Of Table
51.9"
Distance Between Housings
40.1"
Ram Travel
3.14"
Stroke Adjustment Of Ram
2.75"
Open Height
9.64"
Throat Depth
7.8"
Rapid Ram Travel
2.4 IPS
Rapid Ram Return
2 IPS
Overall Dimensions, L x W
73" x 56"
Overall Height
77"
Motor Horsepower
7.5 HP
Weight Approximately
4400 LBS
