USED 1976 DEFUM KNA 43/53

Equipped With

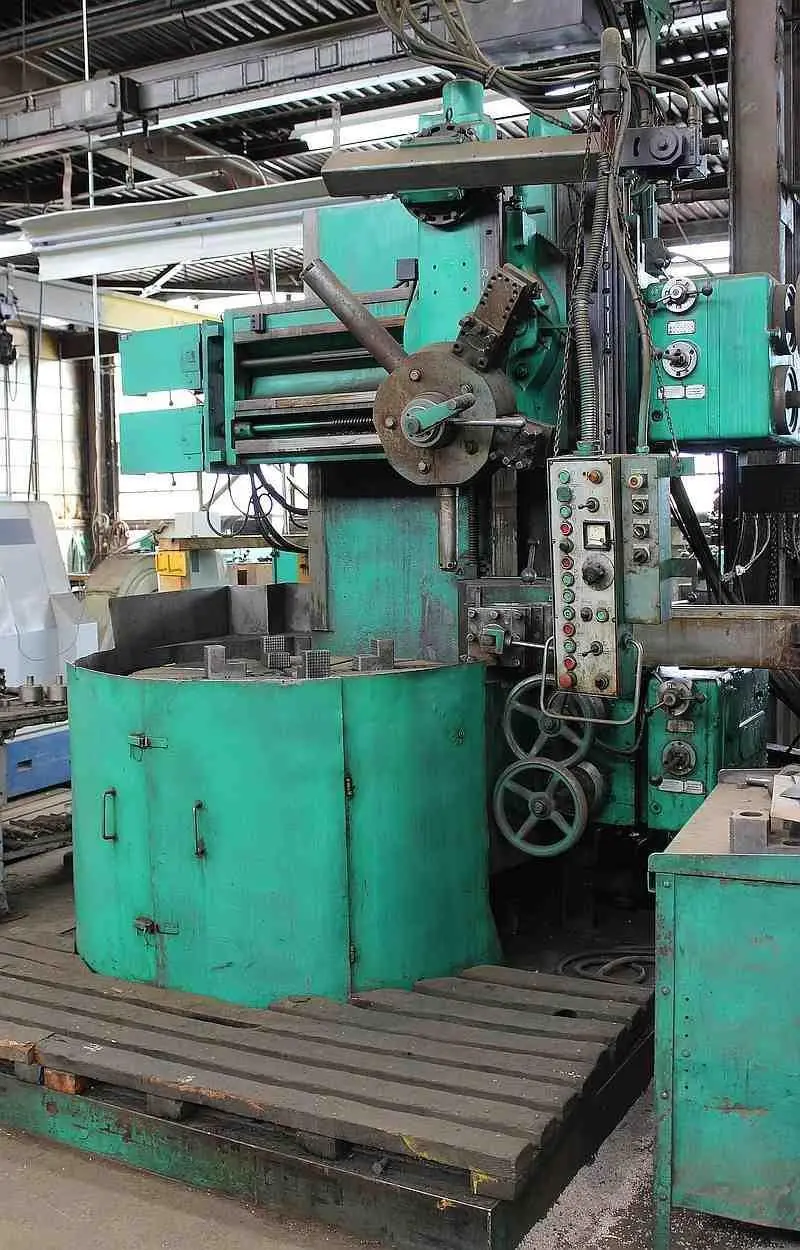

43" DEFUM MODEL: KNA 43/53 VERTICAL TURRET LATHE
New 1976
SPECIFICATIONS:
TABLE DIAMETER................................ 43"
MAX. FACING DIAMETER (SIDE HEAD LOWERED)...... 53"
MAX. TURNING DIAMETER WITH SIDE HEAD.......... 43"
MAX. WORK HEIGHT, TABLE TO TURRET HEAD FACE... 39"
SLIDE TRAVELS:
VERTICAL TRAVEL OF TURRET RAM................. 23 5/8"
BOTTOM OF CROSS RAIL TO TABLE SURFACE......... 7 1/8" - 39"
VERTICAL TRAVEL OF SIDE HEAD.................. 22"
HORIZONTAL TRAVEL OF SIDE HEAD RAM............ 24"
TURRET HEAD SWIVEL............................ +/- 45 DEG.
DIAMETER OF TURRET HEAD BORES................. 2 3/4"
TABLE SPEEDS:
PENDANT SELECTED TABLE SPEEDS (16)............ 6.3 - 200 RPM
MAIN DRIVE TO TABLE........................... 30 HP
FEEDS:
FEEDS TO TURRET AND SIDE HEAD (16)............ 0.008 - 0.393 IPR
RAPID TRAVERSE OF HEADS, PENDANT CONTROLLED... 110 IPM
APPROX. WEIGHT................................ 24,000 LBS

EQUIPPED WITH:
HARDENED CROSS RAIL WAYS

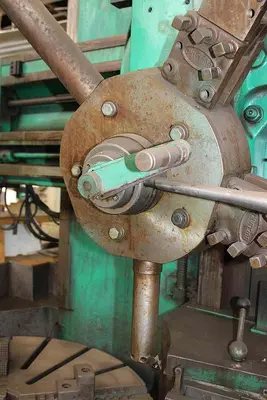

PENTAGON TURRET HEAD

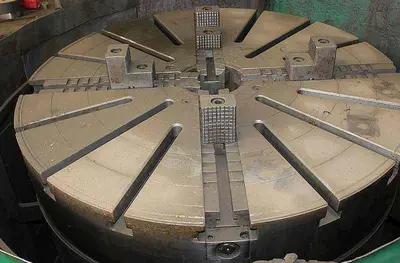

43" 4-JAW CHUCK

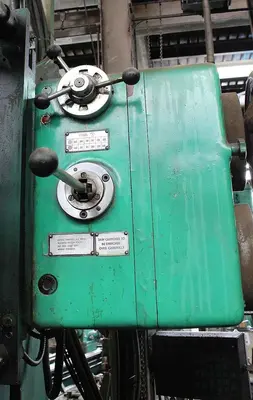

COMPLETE SIDE HEAD WITH FOUR-WAY INDEXING TURRET
COOLANT PAN & GUARDING SYSTEM

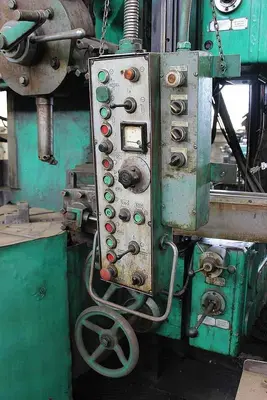

PENDANT CONTROL
MIMIK 180 TRACER ATTACHMENT
THREADING ATTACHMENT
(2) SET OF 4 CHUCK JAWS
(1) LONG BORING BAR
(1) SHORT BORING BAR
(1) LONG FLANGE BOX TYPE TOOL HOLDER
(1) SHORT FLANGE BOX TYPE TOOL HOLDER
COOLANT PAN WITH PUMP & GAURDS
