USED 1996 HURCO HAWK 5M
Overview
Specs
Equipped With

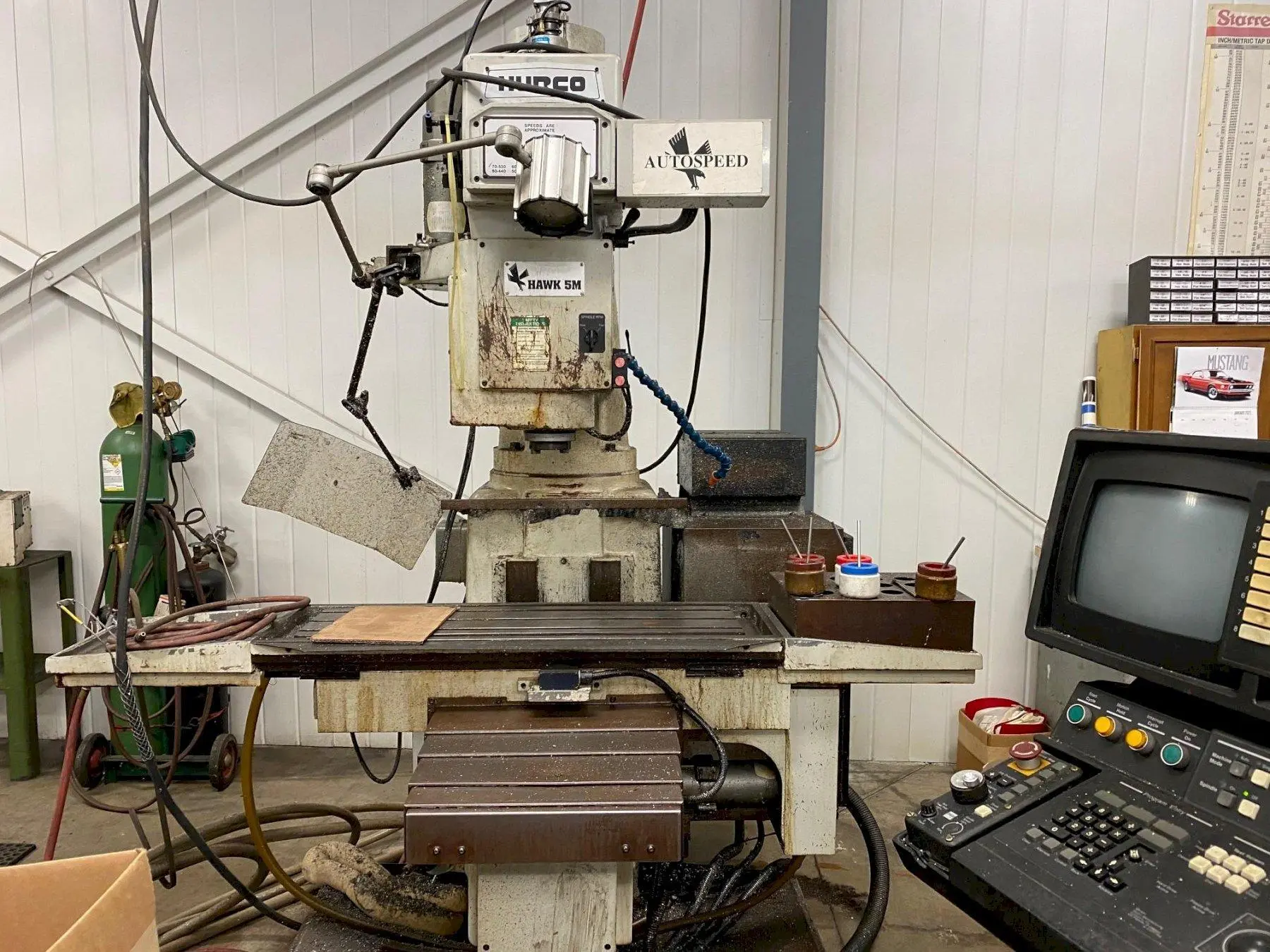

HURCO HAWK 5M 3-AXIS CNC VERTICAL MILL
New 1996
Motor Driven With 5HP, 3 Phase, 60 Cycle, AC Spindle Drive. MD Coolant.
EQUIPPED WITH

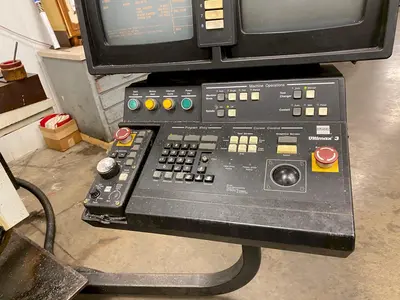

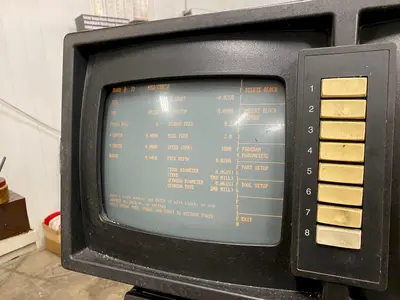

Hurco "Ultimax 3" CNC Controls With Dual Monitors. RS-232 Port. 3-1/2" Floppy Disk Drive. 8" Kitagawa TB 200 Rotary Table Serial No. 950005, Automatic Lubrication System. Work light, Chip Pan, Draw Bar, Table Guard.
SPECIFICATIONS
Table Size 42" x 13"
Maximum Table Load 800 lbs
Travels
Longitudinal (X-Axis) 31"
Cross (Y-Axis) 14"
Quill (Z-Axis) 6"
Vertical Knee (Manual Adj) 15"
Quill Diameter 4.3"
Spindle Taper 40
Spindle Nose To Table
Min 4.5"
Max 19.5"
Spindle Speeds (Var) 100-3500 RPM
Rapid Feed Rate (X,Y) 400 IPM
Approximate Dimensions 110" x 110" x 96"
Approximate Weight 4500 lbs
