USED 1982 HANSVEDT SM-150B

Equipped With
30 AMP HANSVEDT SM-150 B RAM TYPE EDM MACHINE
New 1982

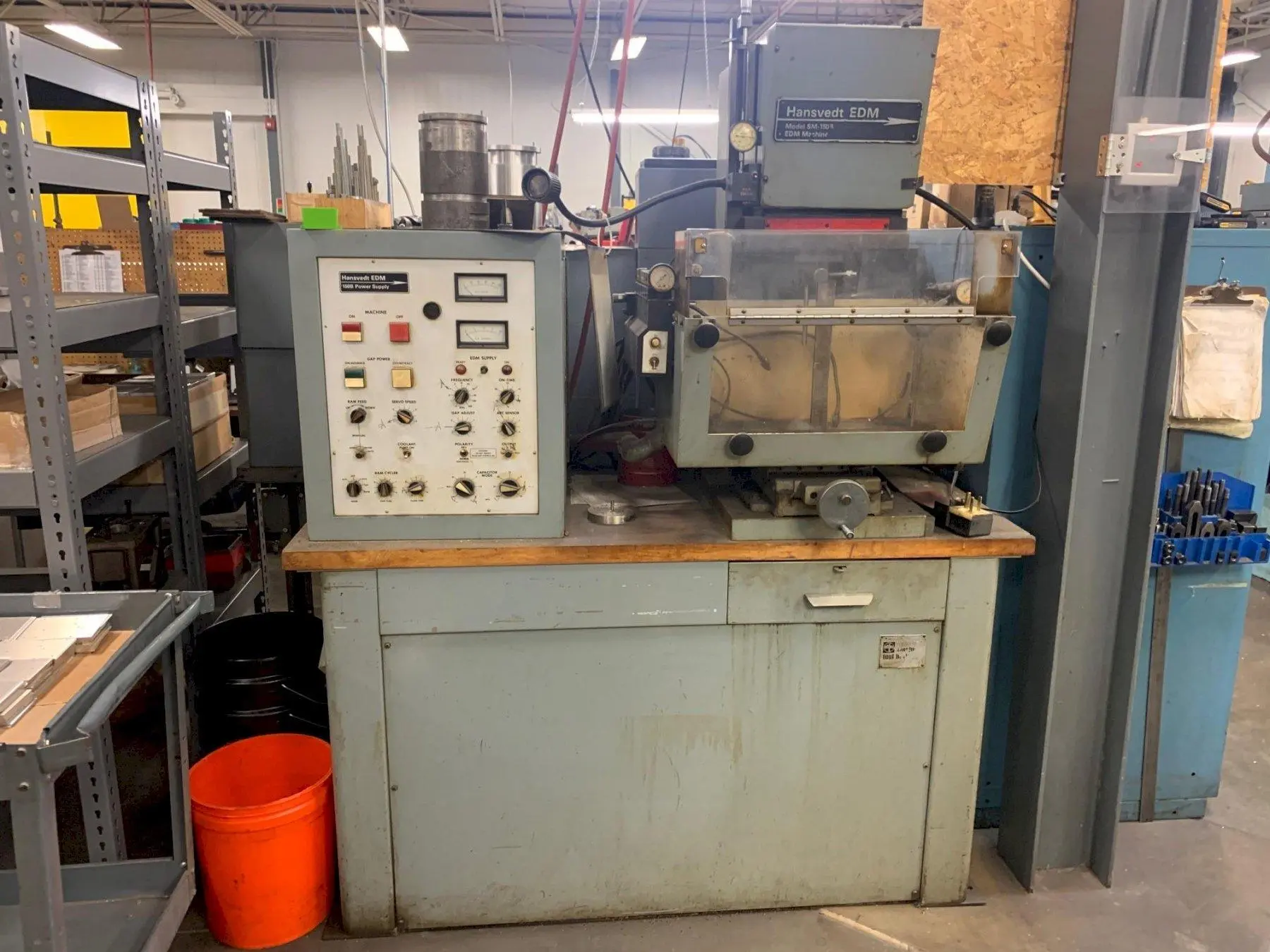

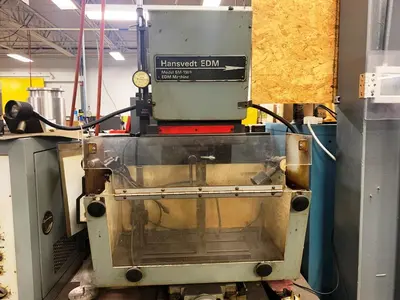

This Hansvedt SM-150B ram EDM system features a 30 amp, 150B power supply and dielectric oil system. This electrical discharge machine features a 13″ X 5″ platen and 24″ X 16″ X 11.5″ tank.
EQUIPPED WITH:

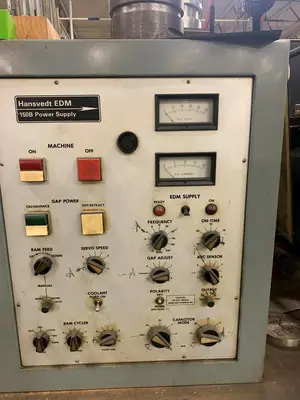

30 AMP, 150B POWER SUPPLY
DIELECTRIC OIL SYSTEM
5″ X 10″ RAM MOUNTED PERMANENT MAGNETIC CHUCK
6″ X 12″ PLATEN MOUNTED PERMANENT MAGNETIC CHUCK
MAPLE TOP BENCH
MANUALS

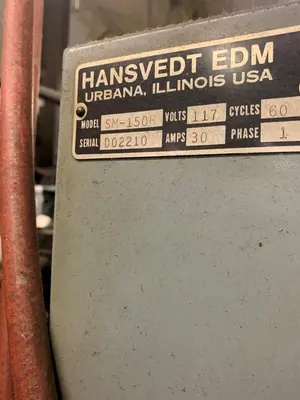

WIRED FOR SINGLE PHASE, 60 CYCLE, 117 VOLTS
SPECIFICATIONS:
WORK TABLE……………………. 15″ X 9″

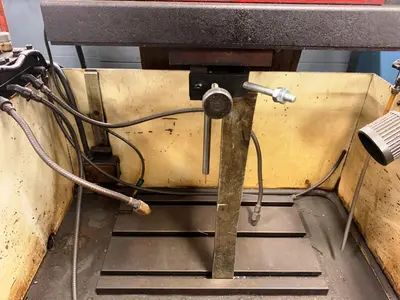

TANK SIZE…………………….. 24″ X 16″ X 11.5″
LONGITUDINAL TABLE TRAVEL………. 8″
CROSS TRAVEL………………….. 6″
RAM TRAVEL……………………. 6″
MAXIMUM DISTANCE PLATEN TO TABLE… 16″
SIZE OF RAM PLATEN…………….. 13″ X 5″
MAXIMUM ELECTRODE WEIGHT……….. 300 LBS
DIMENSIONS:
EDM: 40″ X 36″ X 38″
CONTROL: 20″ X 20″ X 24″
DIELECTRIC TANK: 22″ X 33″ X 27″
HYDRAULIC TANK: 9″ X 23″ X 17″
ASSEMBLED ON BENCH: 76″ X 48″ X 74″
