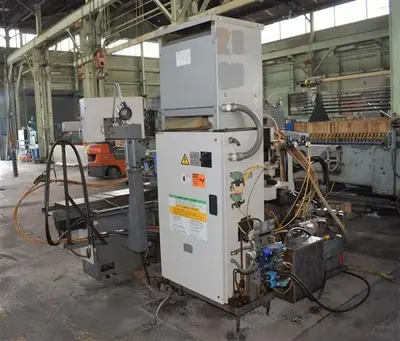

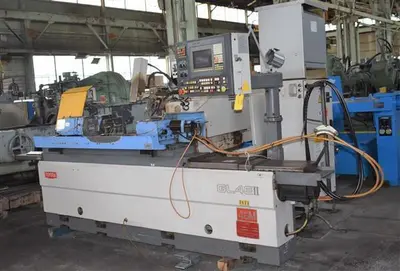

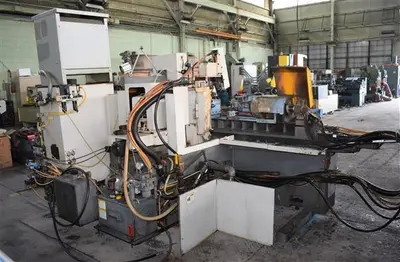

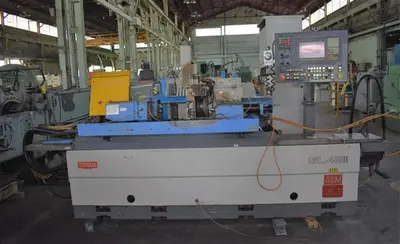

USED 1998 TOYODA GL4P-100EII

Equipped With
12.6" X 39.4" TOYODA MODEL GL4P-100EII CNC STRAIGHT WHEELHEAD CYLINDRICAL GRINDER
SERIAL NO. LG5964-1
EQUIPPED WITH:

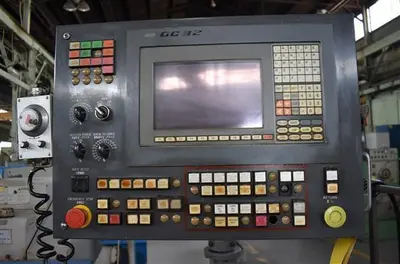

#GC32 Toyoda CNC Control w/CRT
Straight Type Wheelhead Design - Gauging
Table Mounted Diamond Roll Wheel Dresser
Combination Live/Dead Workhead
Combination Manual/Hydraulic Footstock
Foot Pedal - Hand Held Remote
Coolant System (Tank & Pump)

CATALOG SPECIFICATIONS:
Swing Over Table, Maximum
12.6"
Grinding Diameter, Maximum
11.8"
Distance Between Centers, Nominal
39.4"
Weight Capacity Between Centers
330 LBS
Grinding Wheel Diameter, Standard
16"
Grinding Wheel Width, Maximum
4"
Grinding Wheel Width, Standard
3"
Grinding Wheel Hole Diameter
5"
Table Swiveling Angle, CCW~CW
5~0 DEGREES
Wheelhead Feed Stroke, Total
9.76"
Workhead and Tailstock Center Tapers
#4 MT
Grinding Wheel Speeds, Surface-Feet
8850 SFPM
Workhead Spindle Speeds, Infinite Range
10 to 500 RPM
Table & Wheelhead Rapid Feed Rate
591 IPM
Grinding Wheelhead Spindle Motor
7.5 HP
Floor Space, W x D
15' x 9'
Weight, Approximately
10800 LBS
