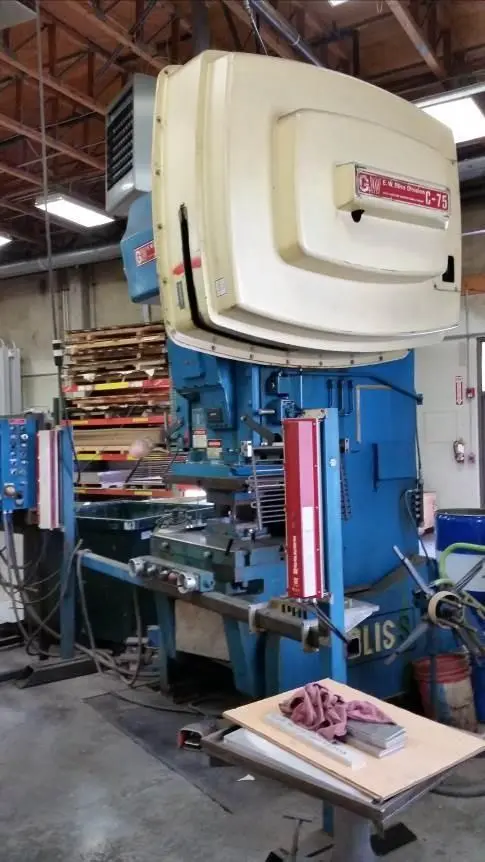

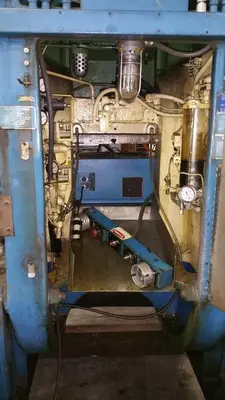

USED 1983 BLISS C-75

Equipped With
75 TON BLISS C-75 GAP FRAME PRESS
New 1983
Specifications:

Capacity                                                                      75 Tons/.06
Crankshaft Diameter                                                  4.5/6.75
Stroke per Minute Constant                                       110
Motor Required                                                          15HP
Stroke of Slide Standard                                             4
Shut Height SDAU                                                     15
Adjustment of Slide                                                    3.5
Bed Area L-R/ F-B                                                     36 x 24
Bed Opening L-R/F-B                                                 18 x 14
Depth of Throat                                                          13
Width of Opening Back                                             19
 Floor Space                                                                 71.5 x 94.25
Weight                                                                        20,500 Lbs
