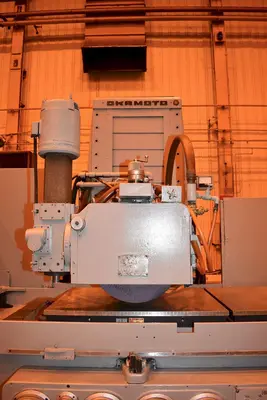

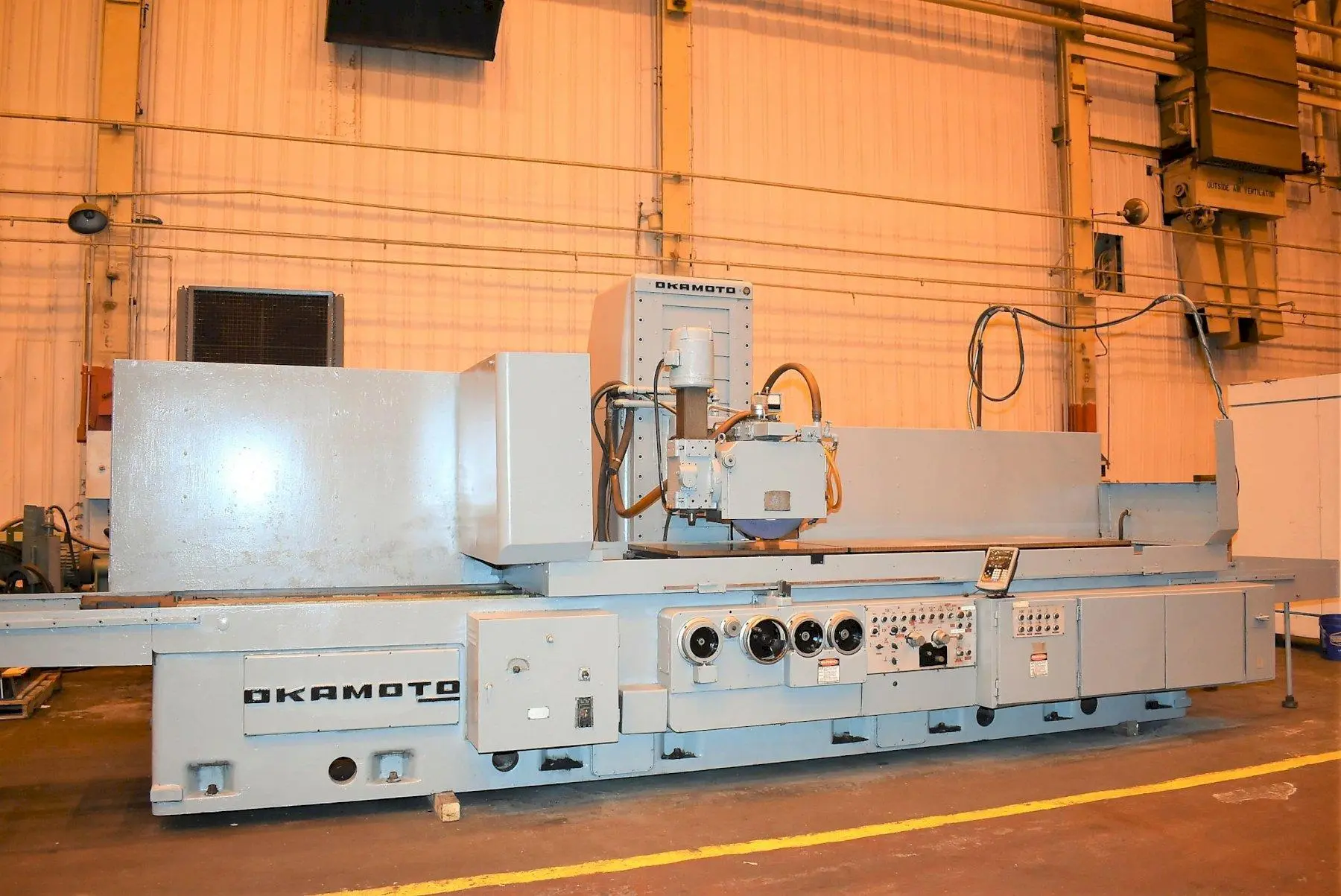

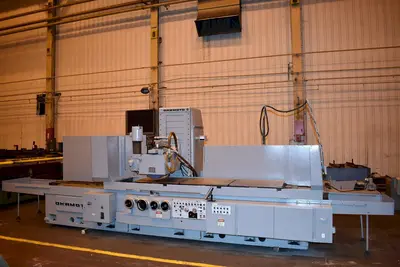

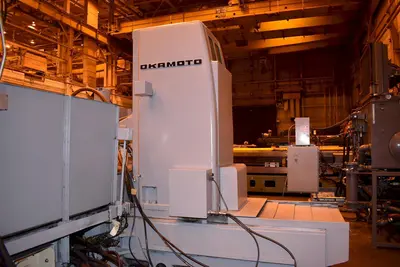

USED 1977 OKAMOTO PSG-308

Equipped With
Okamoto PSG-308 31.25" X 120" Horizontal Surface Grinder
NEW 1977
FEATURES:
32" X 120" MAGNETIC CHUCK
(3) CHUCK SECTIONS
WHEEL DRESSER
MAGNETIC SEPARATOR
SPECIFICATIONS:
MAXIMUM GRINDING WIDTH 31.5"
MAXIMUM GRINDING LENGTH 120.07"
MAX. DISTANCE UNDER WHEEL 31.2"
TOTAL CHUCK SIZE (3 SECTIONS) 31.875" X 120"

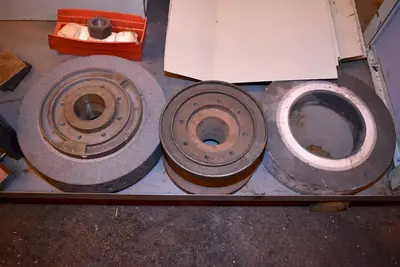

GRINDING WHEEL SIZE 20" X 3.9" X 8"
GRINDING WHEEL SPEED 1200 RPM
MAIN MOTOR 30 HP
EQUIPPED WITH:
31.25" X 120" MAGNETIC CHUCK
(3) 31.875" X 39.3" CHUCK SECTIONS
AUTOMATIC INCREMENTAL DOWNFEED
OVER THE WHEEL AUTO DRESSER
MAGNETIC SEPARATOR
AUXILIARY GRINDING SPINDLE
NOTE:

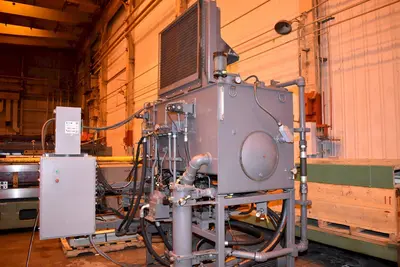

ALL HYDRAULICS REBUILT IN 2010
