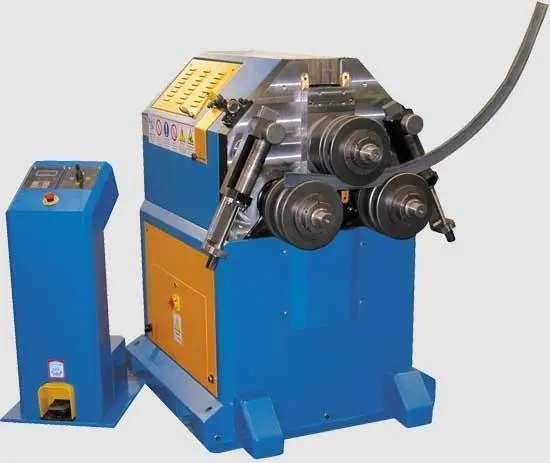

NEW 2022 ERCOLINA CE70H3

Equipped With
3" x 3" x 3/8" ERCOLINA CE70H3, Hyd., Programmable, Angle Bending Roll
New
FACTORY SPECIFICATIONS
Bending Capacity, Pipe: 3" Schedule 40
Bending Capacity, Angle: 3" x 3" 3/8"
Roll Shaft Diameter: 70 mm
Center Roll Positioning: Hydraulic, 16 Tons
Shaft Speed: 8 RPM
Universal Tooling (Included): 9-1/2" O.D.
Number Of Programs: 8
Distance Between Shafts: 15"
Hydraulic Pump: 2.6 HP
Upper And Lower Drive Motors: 1-1/2 HP Into Planetary
KEY FEATURES
*70 mm Roll Shaft Diameter
*Bending Speeds 20% Faster Than Competitive Machines
*Forged Roll Shafts Precision Ground And Fitted For Maximum Performance And Minimal Deflection
*Heavy Duty Structure And Rigid Components For High Section Modulus Ratings
*Reinforced Engineered Mainframe Design Proven To Outperform Competitive Models
*Three Axis Manually Controlled Twist Correctors For Angle Iron "Leg-In" Applications
*Patented By Ercolina, Simultaneous Downfeed And Roll Movement Minimizes Deformation
*Programmable Touch pad Controls With Digital Center Roll Positioning Display
*Memory Storage With Eight (8) Individual Programs And Unlimited Passes
*Remote Control Pendant With Low Voltage Controls And Foot Pedal Switch
*Threaded Roll Shafts With Micrometric Flange Adjustment Helps Eliminate Spacer Usage
*Inline Direct Drive Roll Shaft System With Motor And Brake On each Shaft
Approximate Weight: 2900 Lbs.
