USED 1966 BROWN & SHARPE 1

Equipped With

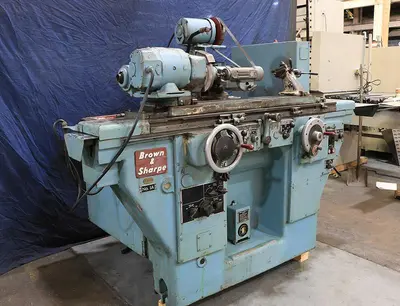

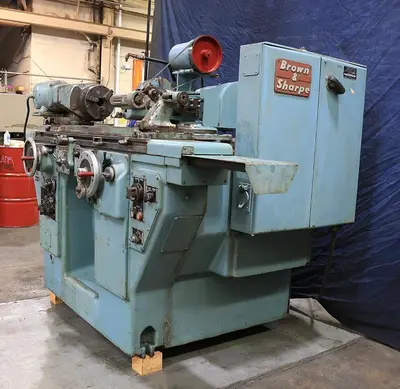

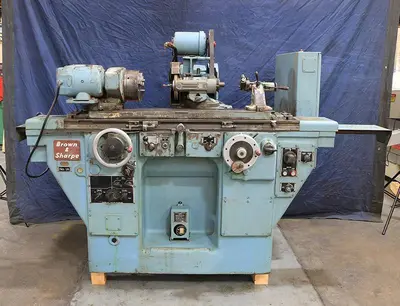

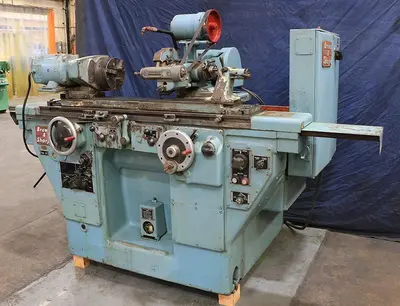

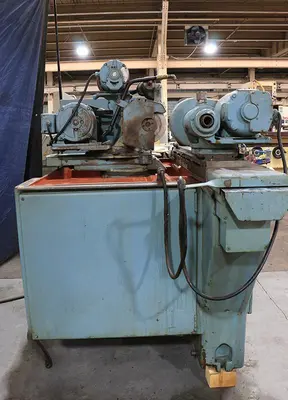

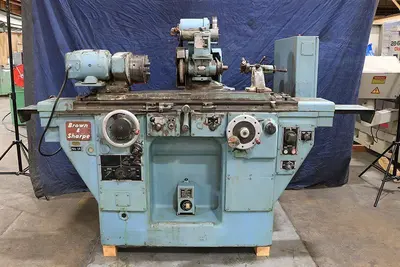

 10" X 20" BROWN & SHARPE MODEL 1 UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER
NEW 1966
UNIQUE TO BROWN & SHARPE GRINDERS FEATURE

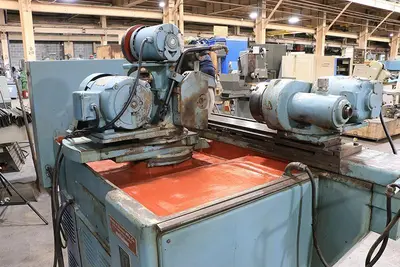

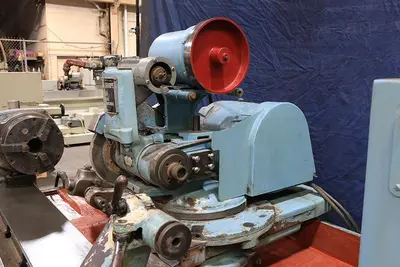

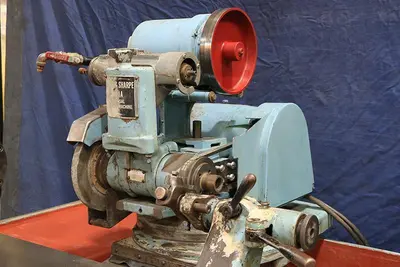

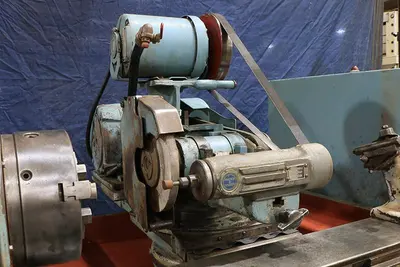

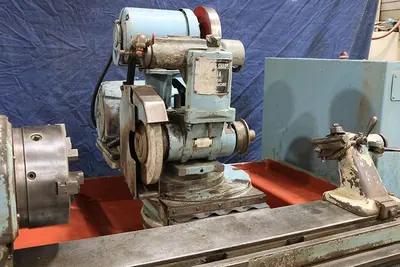

- DOUBLE SWIVEL WHEELHEAD:

"THE WHEEL SPINDLE HEAD WHICH SUPPORTS THE EXTERNAL &
 INTERNAL GRINDING SPINDLES CAN BE SWIVELED TO EITHER
 SIDE OF ZERO. AN ADDITIONAL SWIVEL THROUGH 90 DEGREES
 IS PROVIDED AT THE WHEEL SLIDE. ANY COMPOUND SETTING
 REQUIRED IN COMBINATION STRAIGHT & TAPER OR DOUBLE
 TAPER GRINDING, O.D. OR I.D., CAN BE MADE QUICKLY
 & ACCURATELY. THE UNIVERSAL TURRET, WHICH
 SUPPORTS THE WHEEL SPINDLE HEAD, PROVIDES FURTHER
 ADJUSTMENT FOR CHANGE OF WHEEL LOCATION. THE TURRET
 SWIVELS ON THE WHEEL SLIDE, AND CAN BE LOCKED
 IN ANY OF FOUR POSITIONS. EACH CHANGE MOVES THE
 WHEEL 2". RIGHT HAND WHEEL MOUNTING PROVIDES
 FOUR ADDITIONAL WHEEL POSITIONS."

SWING OVER TABLE .................................. 10"
DISTANCE BETWEEN CENTERS, NOMINAL ................. 20"
DISTANCE BETWEEN CENTERS, MAXIMUM ............. 22-3/4"
GRINDING WHEEL MOTOR ............................. 2 HP
WHEELHEAD SPINDLE SPEEDS .......... INFINITELY VARIABLE
GRINDING WHEEL SIZE ..................... 10" X 1" X 3"
SWIVEL AT THE WHEELSLIDE ........ 90 DEGREES EITHER WAY
WHEEL SPINDLE SWIVELS ........... 90 DEGREES EITHER WAY

HEADSTOCK MOTOR ................................ 1/4 HP
INFINITELY VARIABLE SPINDLE SPEEDS ...... 60 TO 600 RPM
HEADSTOCK SPINDLE NOSE TAPER .................... A2-5"
HEADSTOCK SWIVELS EITHER SIDE OF ZERO ...... 90 DEGREES

INFINITELY VARIABLE TABLE SPEED ........ 3" TO 150" IPM
TABLE PER REV. OF HANDWHEEL:
  SLOW ........................................... 0.1"
  FAST ........................................... 1.5"
DWELL AT EACH OR ALTERNATE TABLE REV. .. 0 - 2-1/2 SEC.

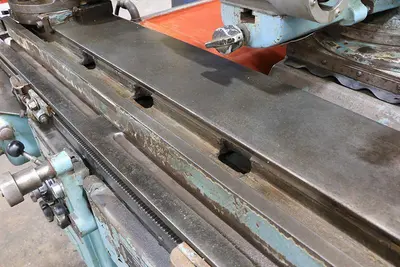

TABLE SWIVEL, SCALES FOR ANGULAR SETTING ... 8-1/4 DEG.
SCALES-TAPER PER FT. ..................... 3-1/2" (25%)
AUTOMATIC CROSS FEED, REDUCTION IN DIAMETER OR WORK
  AT EACH OR ALTERNATE REVERSALS ...... 0.0001" - .003"
HAND FEED PER REV. OF HANDWHEEL:
  SLOW ........................................... 0.1"
  FAST ........................................... 0.3"

TAILSTOCK SPINDLE TAPER ...................... #7 JARNO
TAILSTOCK SPINDLE TRAVEL ......................... 5/8"

APPROXIMATE WEIGHT .......................... 5,100 LBS

MACHINE FEATURES:
  WHEELHEAD - DOUBLE SWIVEL & TURRET (DESCRIBED ABOVE)
  HYDRAULIC TABLE TRAVERSE
  AUTO INFEED

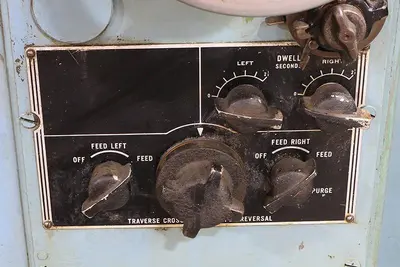

  ADJUSTABLE TABLE DWELL
  RIGHT OR LEFT END WHEEL MOUNTING
  SWIVELLING AT WHEEL SPINDLE HEAD OR AT THE WHEEL
   SLIDE PERMITS ANY COMPOUND SETTING REQUIRED IN
   COMBINATION STRAIGHT AND TAPER GRINDING,
   EXTERNAL OR INTERNAL
  L.H. & R.H. GRINDING WHEEL COVERS
  DUAL DEAD/LIVE HEADSTOCK SPINDLE
  SELF-CONTAINED COOLANT SYSTEM

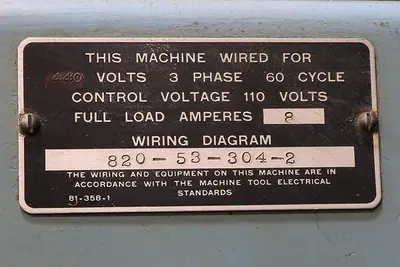

  3/60/220-440 VOLT MOTORS

EQUIPPED WITH:

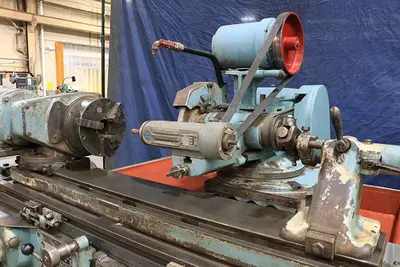

SWING DOWN I.D. GRINDING ATTACHMENT WITH I.D. SPINDLE

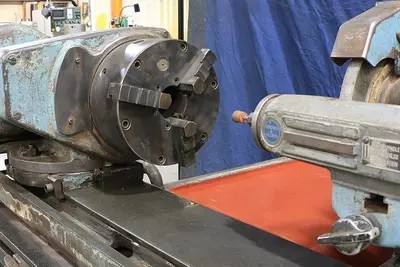

3-JAW CHUCK MOUNTED ON WORKHEAD
ELECTRALIGN TABLE TAPER ADJUSTMENT (NOT WORKING)

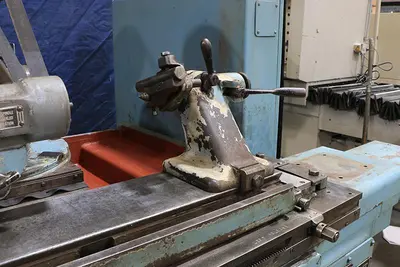

DRESSER MOUNTED ON THE BACK OF THE TAILSTOCK
WIRED PRESENTLY FOR 220 VOLTS
