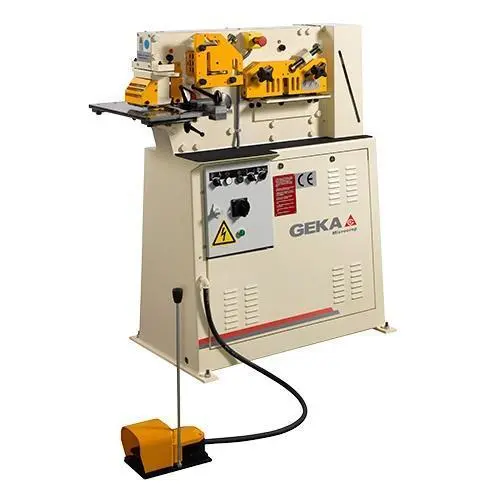

NEW GEKA MICROCROP ONE CYLINDER HYDRAULIC IRONWORKER
The Geka Microcrop hydraulic ironworker machine is one of our three models of one-cylinder hydraulic machines. The Microcrop has a punching station that can cut materials from Ø 1 1/16″ x 3/8″ with blades that cut with minimum deformation. Its flat bar shearing station also offers great cutting quality.
Additionally, the different stations in the Microcrop machine may be mounted with optional Geka accessories and tools to equip it to perform a range of metalworking tasks.
The three workstations in the Geka Microcrop ironworker machine
Punching station: features a monoblock body, a blade-holder adjustment, an adjustable stripper, and an accurate positioning table.
Shearing station for flat bars: may be configured to shear round bars.
Angle cutting station: (Shear for section iron L at 90º).
Optional equipment for Geka Microcrop machines
Optional punching equipment that can cut materials up to Ø 1 7/16″ x 5/16″ and includes a gauge table.
Optional blades for the angle shearing station for cutting round bars.
Optional notcher for the machine’s punching station that includes a gauge table.
An automatic electric stop may also be mounted on the flat shearing station for cutting materials in the same length easily.
Geka Microcrop Ironworker Features and Specifications
FEATURES
MICROCROP
Punching Power
40 US Tons
Punching
Ø 1-1/16″x3/8
Shears for Flat Bars
13¾” x ¼” / 8″ x ½”
Angle cutting
3″ x 3″ x 5/16″
Capacities based on a material resistance of 65,000 tensile.
The manufacturer reserves the right to make modifications without prior notice.
ptional features for the Microcrop Hydraulic Machine
Punching equipment up to 1 7/16″ x 5.16″ in thickness
Rectangular notching equipment for the punching station
Blades for cutting bars with a minimum amount of material deformation
Automatic electric stop for the flat shearing station. Allows to cut the same lengths in a fast and easy way
