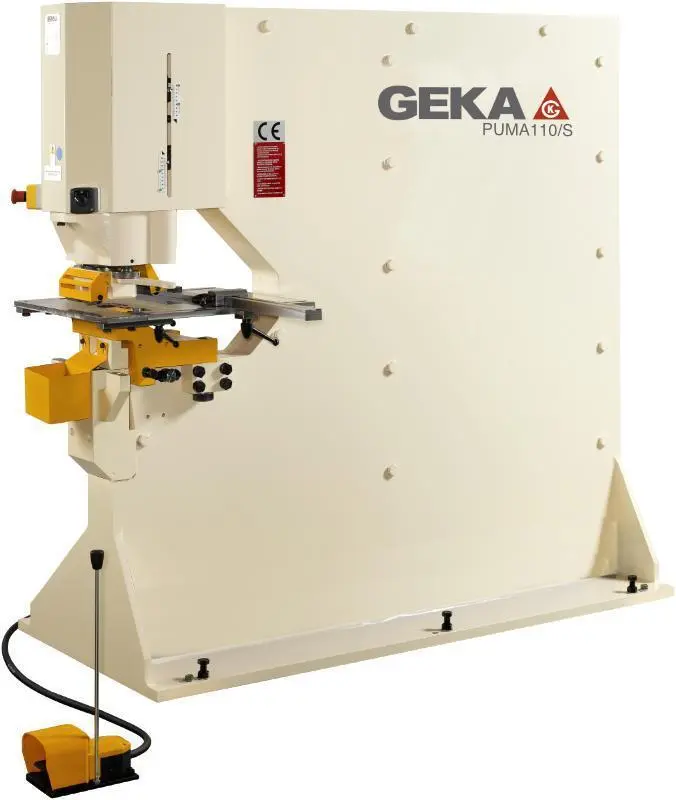

NEW GEKA PUMA 110 HYDRAULIC PUNCHING MACHINE
Puma 110 Punching Machine
The Geka Puma 110 is the middle option out of the five models in Geka’s Puma Series of hydraulic punching machines. The series of Geka Puma punching machines are designed using powerful CAD CAM equipment and can be adapted to perform a wide range of punching jobs. Over 60,000 users worldwide utilize Geka shearing and punching machines.
The standard features of the machines in the Puma Series include
• A guided cylinder • A technically dimensioned frame • A strong and accurate shaft system to avoid distortions • Guided punch centering • Safety protection • Quick punch change material stripper for Geka tools • Optimum operation speed
Puma 110 Punching Machine Specifications
The punching power for the Geka 110 is of 120 US tons, with a maximum capacity for a diameter of 1 1⁄2” x 3/4”. It comes in two versions: the S and the SD. The S has a throat depth of 19 5/8” and a net weight of 6,945 lbs. while the SD offers a throat depth of 29 1⁄2” and weights at 8,755 lbs. The rest of the specifications are as follows:
HYDRAULIC PUNCHING MACHINES:


PUMA-110
PUNCHING



Punching power

US Tons
120
Maximum capacity

Ø
1-1/2″ x 3/4″
Throat Depths
S
in
19-5/8″

SD
in
29-1/2″
PUNCHING OF SECTIONS WITH GOOSENECK DIE HOLDER



I on the leg

in
4″ to 17-3/4″
I on the web

in
4″ to 19-5/8″
U on the leg

in
4-3/4″ to 15-3/4″
U on the web

in
4-3/4″ to 15-3/4″
GENERAL FEATURES



Motor power

H.P.
12
Strokes per minute based on 3/4″ Travel of Punching Cylinder


28
Maximum stroke

in
3-5/32″
Working height
S/SD
in
39″/ 42″
Net weight
S/SD
Lbs
6,945 / 8,755
Gross weight
S/SD
Lbs
7,495 / 9,480
Volume
S/SD
Ft3
196″ / 240 7/8
Dimensions with Seaworthy Packaging
S
in
82″ x 51″ x 81″

SD
in
90″ x 51″ x 91″
OPTIONAL EQUIPMENT



Oversize Diameters Punching

Ø
4″ x 3/8″
Capacities based on a material resistance of 65,000 tensile.
The manufacturer reserves the right to make modifications without prior notice.
The Geka Puma 110 may be adapted to your specific fabrication needs with the available optional and standard accessories. These include:
• 4” or 6” oversize punching attachment
• Punch gauging table
• Semi-paxy X-Y positioning table system
