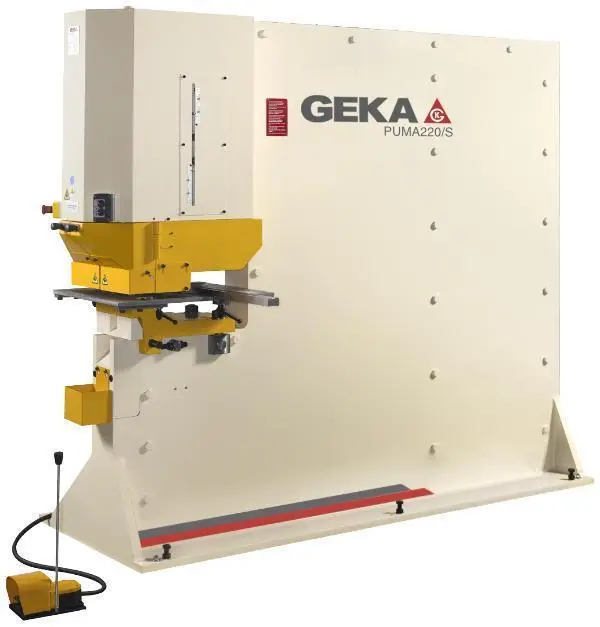

NEW GEKA PUMA 220 HYDRAULIC PUNCHING MACHINE

If you are looking for power in a reliable punching machine, the Geka Puma 220 will be a valuable partner in your manufacturing needs. The Puma 220 is the most powerful model in the Geka Puma Series  of hydraulic punching machines, with a punching power of 220 US Tons.
The Geka Puma 220 comes in an S version with a throat depth of 20” and a weightier SD version with a throat depth of 31 1⁄2“. The standard characteristics offered by both versions include:
• A guided cylinder
• A technically dimensioned frame
• A strong and accurate shaft system to avoid distortions
• Guided punch centering
• Safety protection
• Quick change punch-holder stripper for Geka tools
• Optimum operation speed
Specifications for the Puma 220 ironworker
HYDRAULIC PUNCHING MACHINES:


PUMA-220
PUNCHING



Punching power

US Tons
220
Maximum capacity

Ø
1-1/2″ x 1 1/2″
Throat Depths
S
in
20″

SD
in
31-1/2″
PUNCHING OF SECTIONS WITH GOOSENECK DIE HOLDER



I on the leg

in
4″ to 17-3/4″
I on the web

in
4″ to 19-5/8″
U on the leg

in
4-3/4″ to 15-3/4″
U on the web

in
4-3/4″ to 15-3/4″
GENERAL FEATURES



Motor power

H.P.
27
Strokes per minute based on 3/4″ Travel of Punching Cylinder


25
Maximum stroke

in
3-15/16″
Working height
S/SD
in
39-7/8″ / 39-7/8″
Net weight
S/SD
Lbs
11,465 / 12,125
Gross weight
S/SD
Lbs
12,570 / 13,230
Volume
S/SD
Ft3
340″ / 353-1/8″
Dimensions with Seaworthy Packaging
S
in
100″ x 63″ x 93″

SD
in
105″ x 63″ x 93″
OPTIONAL EQUIPMENT



Oversize Diameters Punching

Ø
4″ x 5/8″
Capacities based on a material resistance of 65,000 tensile.
The manufacturer reserves the right to make modifications without prior notice.
Additionally, you may also use the Puma 220 with optional accessories, depending on your punching needs, including:
• 4” or 6” oversize punching attachment
• Punch gauging table
• Semi-paxy X-Y positioning table system
