Equipped With

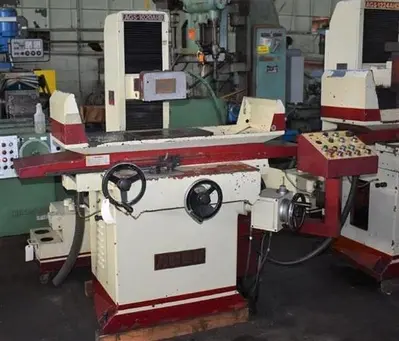

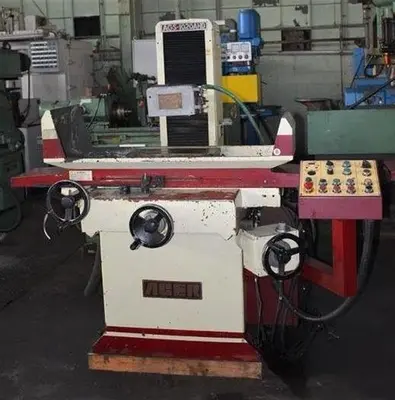

10" X 20" ACER MODEL AGS-1020AHD AUTOMATIC HYDRAULIC-FEED HORIZONTAL-SPINDLE SURFACE GRINDER
New 2000

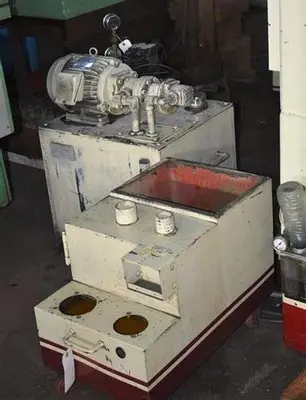

EQUIPPED WITH: ELECTRO-MAGNETIC CHUCK INCREMENTAL POWER DOWN FEED PARALLEL GRINDING WHEEL DRESSER COOLANT SYSTEM (TANK & PUMP)
SPECIFICATIONS:
Table working surface, w x l
9" X 20"
Grinding width capacity, maximum
10"
Grinding length capacity, maximum
20"
Height spindle center to table, maximum
19-1/2"
Table load capacity
1000 LBS
Table longitudinal, power
20-1/2"
Table cross travel
11"
Grinding wheel diameter, standard
8"
Grinding wheel width, standard
0.5"
Grinding wheel hole diameter
1.25"
Grinding spindle speed
3580 RPM
Table longitudinal feeds, range
16 TO 80 FPM
Crossfeed travel feeds, automatic
0 TO 1"
Spindle auto downfeed , range
.0001 TO .001 IPR
Spindle horsepower
2 HP
Hydraulic motor horsepower
2 HP
Floor space required,
5'6" X 6'
Weight, approximately
3580 LBS
