USED 1999 CITIZEN E-32

Equipped With

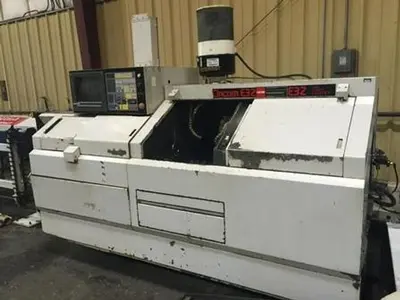

Citizen E-32 CNC Screw Machine | Chip Conveyor,Live Tools, Barfeed
New 1999

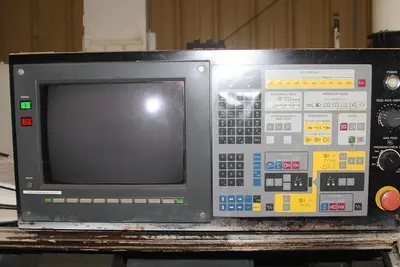

CONTROL: MITSUBISHI MELDAS 500L
7 CONTROLLED AXES: (X1, X2, Z1, Z2, Z3,C1,Y)
MAXIMUM MACHINING DIAMETER: 1-1/4
MAXIMUM MACHINING LENGTH: 12.6
SPINDLE SPEED: 130-6000 RPM
ROTARY TOOLS:
MAXIMUM DRILLING / THREADING DIAMETER: .393 / 5/16
SPINDLE SPEED: 225-4460 RPM
BACK-WORK:
MAXIMUM CHUCKING DIAMETER OF BACK-WORK SPINDLE: 1-1/4
MAXIMUM BACK-WORK LENGTH: 12.5
MAXIMUM DRILLING / THREADING DIAMETER: .5 / 1/2
BACK-WORK SPINDLE SPEED: 150-5000 RPM
NO. OF TOOLS INSTALLABLE: 20
NO. OF TURRET INDEXES: 10 x 2 PER TURRET
(20 ASSIGNABLE POSITIONS WITH HALF-INDEX)
TOOL SIZE: 3/4 x 3/4 x 3.5
MAIN SPINDLE MOTOR DRIVE: 5.5KW / 7.5 HP
POWER SUPPLY: 16 KVA
REQUIRED FLOOR SPACE: 64 x 120 X 72H
WEIGHT (APPROX.): 9500 LBS.
EQUIPPED WITH :

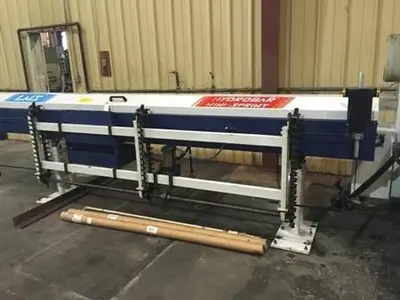

12' Magazine LNS Hydra Bar Mini Sprint Bar Feed
Tool Pre Setter

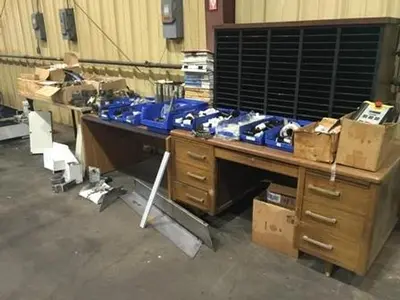

Tooling
Manuals
Live Tooling (radial & Axial)
Chip Conveyor
Royal Mist Collector
Parts Catcher
Coolant

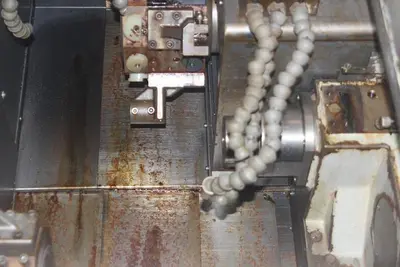

Twin Turrets, 10 station each
32mm Sub Spindle
Barfeed Accesories
Misc Spare Parts
