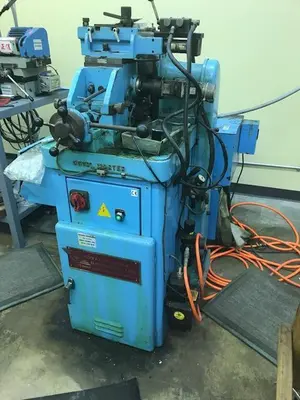

USED 2007 ROYAL MASTER TG12X4

Equipped With
ROYAL MASTER MODEL TG12X4 CENTERLESS GRINDER WITH AUTOMATIC CYCLE OPTION
Serial No. 2861  New 2007
Motor Drive with 10 HP AC Motor & Controls
Equipped With:
Thru Feed Grinding
New Servo Drives Recently Installed
Thru Feed Work Rest
Coolant Filtration System
Auto Lube System.


SPECIFICATIONS:
SPECIFICATIONS:
Capacity:                                                          0.004"- 1 1/2"
Grinding Wheel Size:                                       12" x 4" Wide
Regulating Wheel Size:                                    6" x 4"
Grinding Wheelhead:
Speed:                                                             75- 80 RPM
Max. Swivel For Taper Grinding:                     5 Degrees
Regulating Wheelhead:
Speed (Variable):                                             20- 500 RPM
Max. Angle Of Tilt For Thru Feed Grinding:      6 Degrees
Approximate Dimensions (L x W x H):              54" x 30" x 66"
Approximate Weight:                                         2,300 Lbs.
