Equipped With

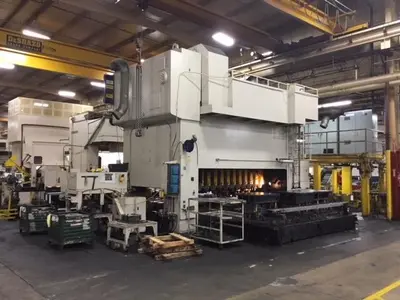

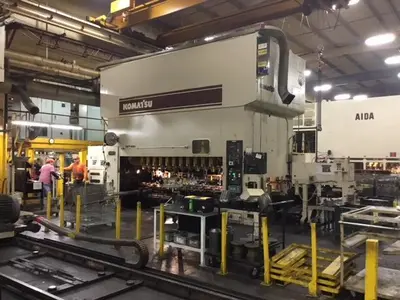

500 TON KOMATSU MODEL E2T-500 STRAIGHT SIDE DOUBLE CRANK MECHANICAL TRANSFER PRESS
New 1992
SPECIFICATIONS:
CAPACITY................................ 500 TONS MM, 550 SHORT TONS
STROKE.................................. 450 MM, 17.7"
SPEED................................... 15 - 30 SPM
DIE HEIGHT.............................. 680 MM, 26.8"
SLIDE ADJUSTMENT........................ 100 MM, 3.9"
BED..................................... 145.7" L-R X 55.1" F-B
SLIDE................................... 141.7" L-R X 55.1" F-B
BOLSTER................................. 145.7" L-R X 55.1" F-B X 8.7" THICKNESS
WINDOW OPENING.......................... 70.8"
INCLUDES:
DESTACKING BLANK FEEDER
KOMATSU TRANSFER
AIR CUSHION
2 ROLLING BOLSTERS
