USED 1956 CARLTON 3A

Equipped With

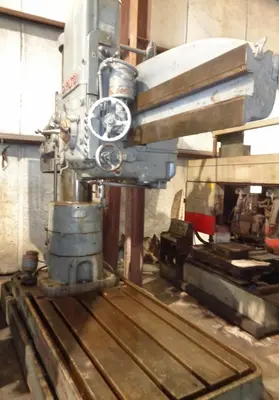

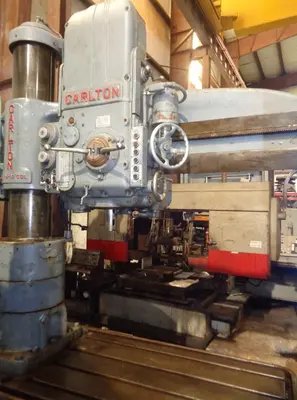

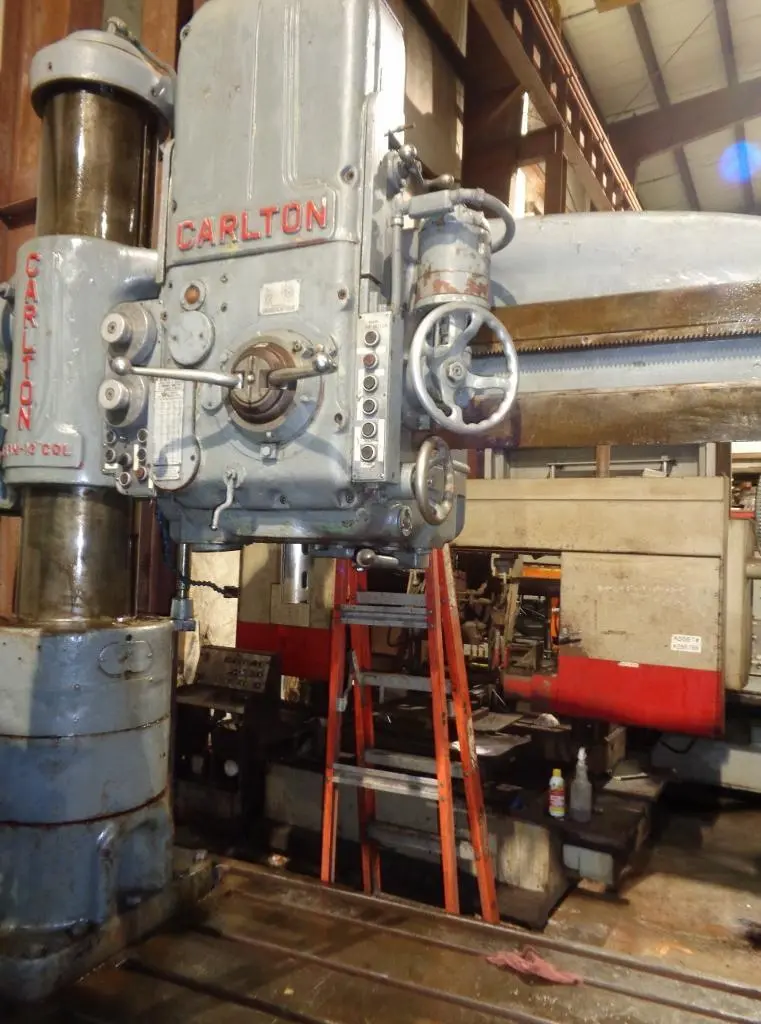

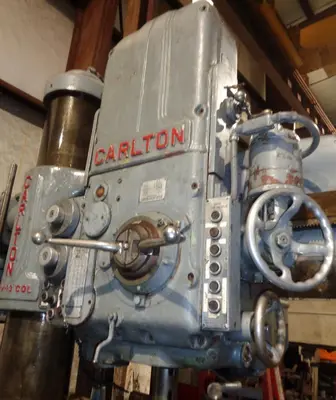

USED 5' x 13" CARLTON MODEL 3A RADIAL ARM DRILL
New 1956
Arm Length: ............................................................... 60"
Distance Face of Column to Spindle C/L:...................................... 15" – 60"
Head Traverse on Arm:.............................................................. 45"
Arm Travel on Column:.......................................................... 31-1/2"
Column Diameter:................................................................... 13"
Distance Spindle to Base:.................................................. 10.5" – 72"
Working Surface of Base:..................................................... 65" x 42"
Spindle Traverse in Head:.......................................................... 18"
Spindle Taper: .......................................................... No, 5 MT
Spindle Speeds: ................................................. (36) 15 – 1500 RPM
Spindle Feeds: ....................................... (18) 0.004" – 0.125" / Rev.
Threading Capacity:.............................................. 8", 11-1/2", 14", 18"
Motor: .................................................. 15 HP 3/60
Overall Dimensions (Approx.):...................................... 132" x 45" x 127" H
Weight (Est.): ............................................,........ 17,500 Lbs.
Equipped With:
Power Clamping
Power Head Traverse
Power Elevation
Universal Tilting Table
Coolant System
