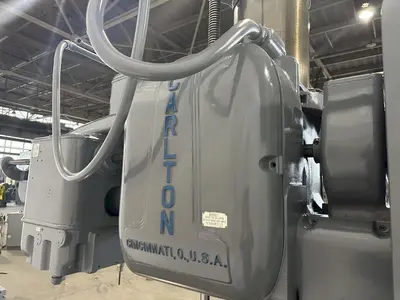

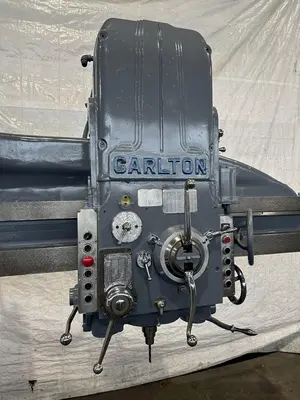

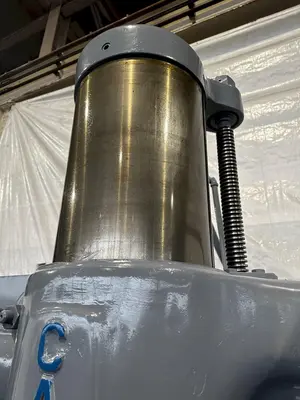

USED 1965 CARLTON 3A
Overview
Specs
Equipped With

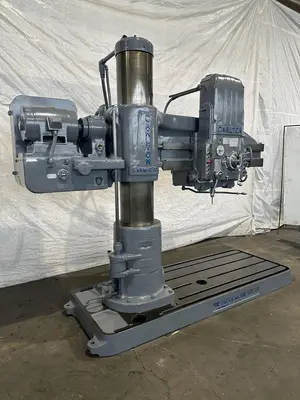

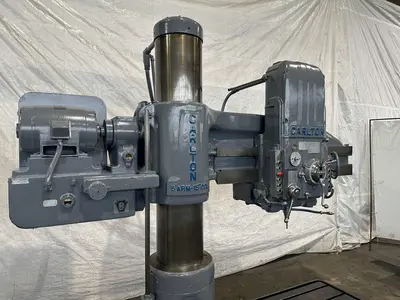

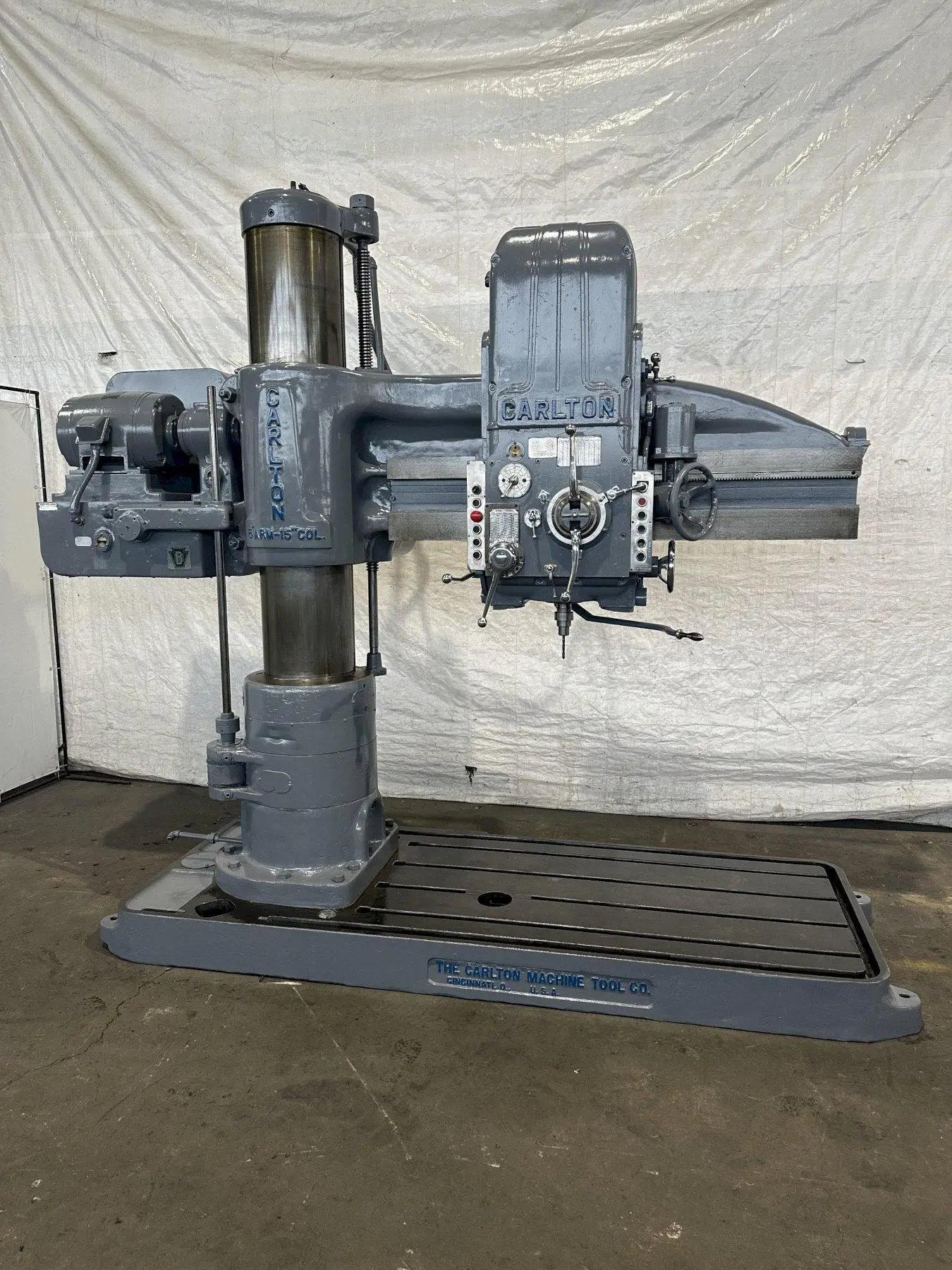

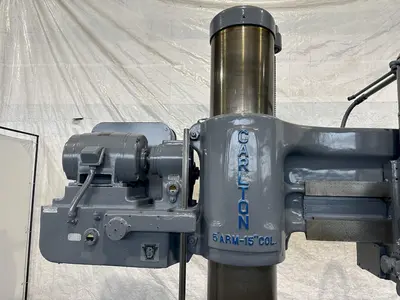

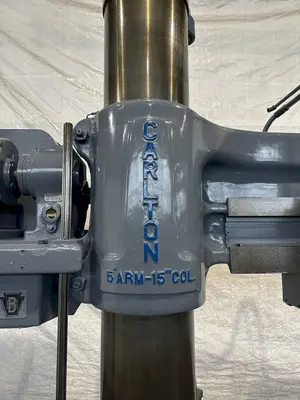

5' X 15" CARLTON MODEL 3A RADIAL ARM DRILL
New 1965

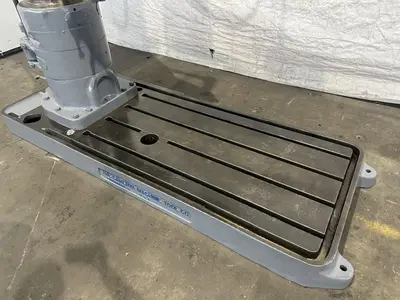

AREA OF BASE .......................... 65" X 42"

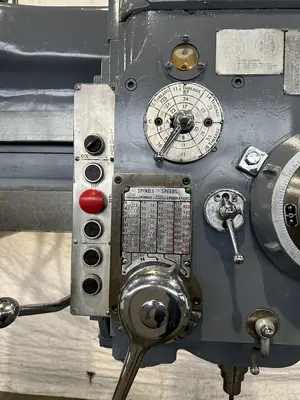

SPINDLE SPEEDS ........................ (36) 12 TO 1200 RPM
SPINDLE FEEDS ......................... (18) .004 TO .125 IPR
TAP LEADS ............................. 8, 11-1/2, 14, 18 TPI
SPINDLE TRAVEL ........................ 18"
DIAMETER OF SPINDLE ................... 3-3/16"
TAPER IN SPINDLE ...................... #5MT
DISTANCE SPINDLE TO BASE .............. 10-1/2" MIN, 66" MAX
DISTANCE SPINDLE TO COLUMN ............ 15" MIN, 60" MAX
POWER ARM ELEVATION ................... YES
POWER HEAD TRAVERSE ................... YES
POWER COLUMN CLAMPING ................. YES
POWER HEAD CLAMPING ................... YES
COOLANT ............................... YES
SPINDLE MOTOR, HORSEPOWER ............. 20
