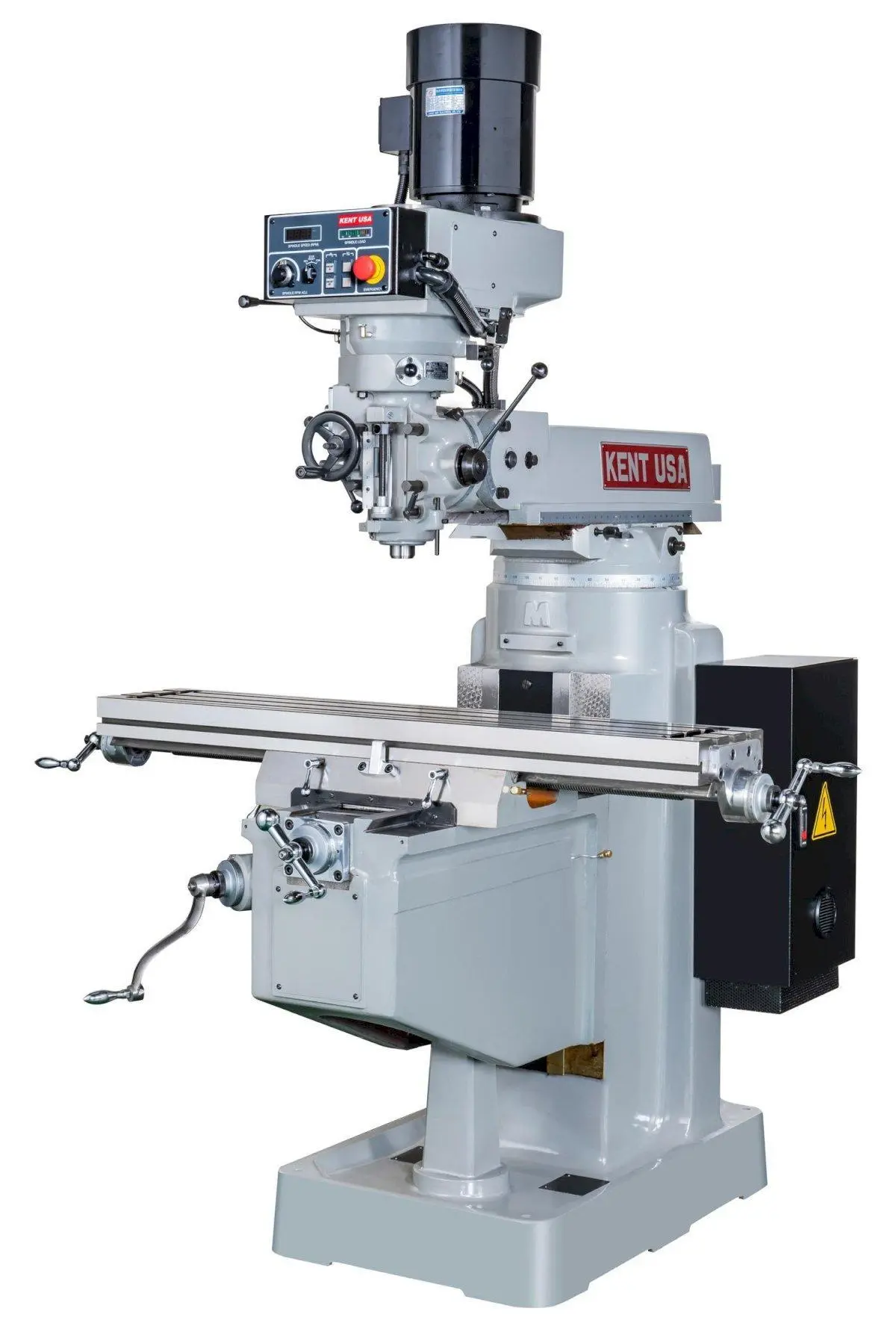

NEW KENT KTM-3VKF

Equipped With
10" x 50" KENT USA KTM-3VVK MANUAL KNEE MILL - NEW
PRODUCT FEATURES
3 HP spindle  motor, mechanical infinitely variable speed head
10” x 50” (Opt. 10″ x 54″) hardened and ground table top
Table, saddle, and knee with hardened and ground dovetail ways
Precision ground leadscrews with backlash compensating double nut
Precision bored and ground milling head, with super precision ABEC-7 bearings
Meehanite castings, with built in coolant reservoir in machine base
Centralized one-shot lubrication, with metered check-valves
Variable Frequency Drive
Digital RPM Display
Load Monitor
OPTIONAL ACCESSORIES

DRO system
Table (X-Axis) Power Feed
Saddele (Y-Axis) Power Feed
Knee (Z-Axis) Power Feed
Air Power Drawbar
Flood Coolant System
Chip Tray
Right Angle Milling Attachment w/ Arbor Support
Rustlick Coolant (1 Gal., Mixes 1:30)
Riser Blocks (4″/6″/8″)
Angle-lock Vises (6″/8″)
Rotary Table
Clamping Kit (52pc)
R-8 Collet Set
Single Phase Motor Option
NMTB-30 Spindle



Table Size
Table Travel (X-Axis)
Saddle Travel (Y-Axis)
Knee Travel (Z-Axis)
Quill Travel
Ram Travel
Spindle Motor
Spindle Speed
Spindle Taper
Quill Diameter
Quill Feed Rate
Drilling Capacity (Manual / Power)
Boring Capacity
Milling Capacity
Maximum Work Load (Center)
Spindle Nose to Table Surface
Spindle Center to Column
Net Weight
Gross Weight
Shipping Dimensions
Power Requirements

KTM-3VKF

10" x 50" (Opt 10" x 54")
35"
15.25"
15"
5.5" (4" w/MillPwr-3 CNC Control)
22"
3 HP
60–500-4200 RPM (Var)
R-8
3.375"
0.0015" / 0.003" / 0.006" in/rev
0.75" / 0.37" diameter
6" diameter
2.0 in³/min
850 lbs
2.75" - 17.75"
5" - 27"
3000 lbs
3100 lbs
72" x 72" (skid)
220 Volts. 3 Phase, 60Hz, (10 Amp (Optional 440V, requires 5 Amp)
